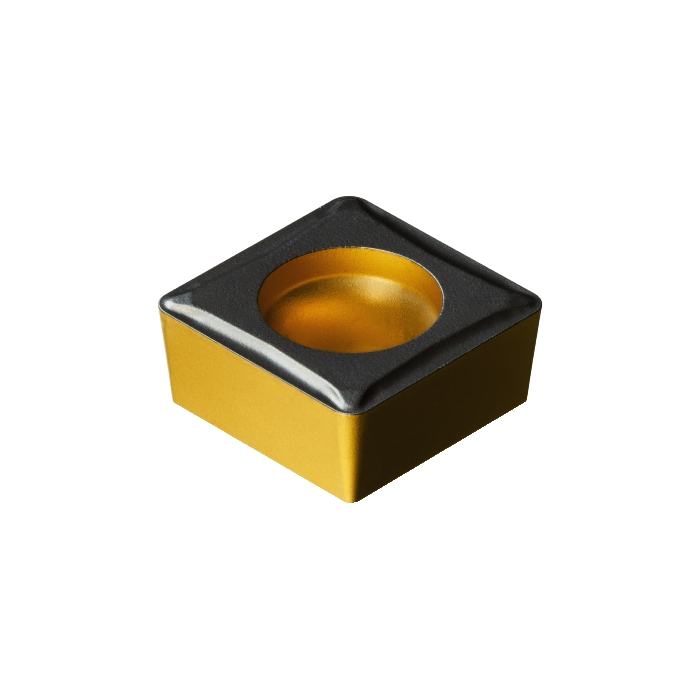

Sandvik Coromant SCMT 09 T3 08-UF 4425 CoroTurn™ 107 insert for turning

R 202,40 inc. vat
In stock
SKU
7860864
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3.5g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 8.725mm
L - Cutting Edge Length 9.525mm
ORDCODE SCMT 09 T3 08-UF 4425
CHANGEDATE 2022-09-23 22:04:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SC09T3_1
Grade 4425
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation UF
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
