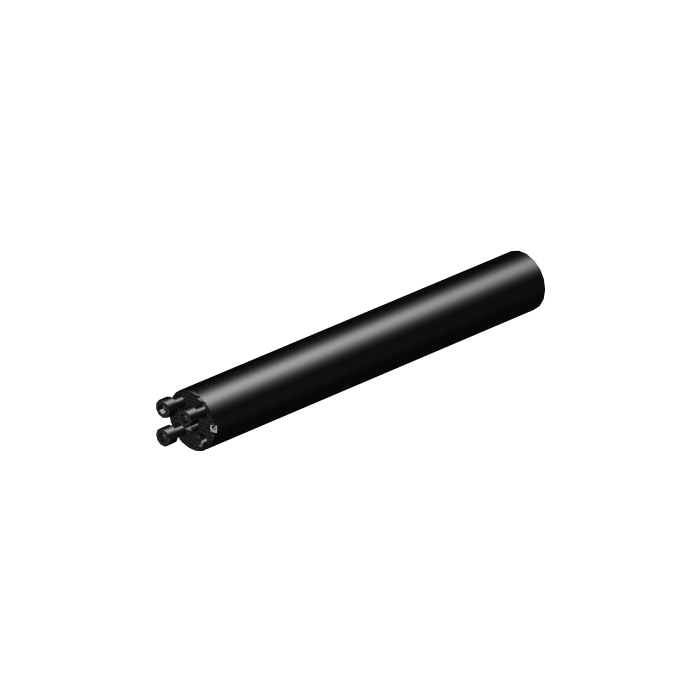

Sandvik Coromant SL-2C A12 140-20 Cylindrical shank to CoroTurn™ SL adaptor
R 7 537,10
inc. vat
Out of stock
SKU
7628248
Cylindrical shank to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to CoroTurn® SL adaptor
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DCON - Connection Diameter | 20mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 140mm |
| BD - Body Diameter | 20mm |
| LB - Body Length | 140mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 2.8Nm |
| WT - Weight Of Item | 0.282kg |
| OAL - Overall Length | 140mm |
| OHX - Maximum Overhang | 60mm |
| LSC - Clamping Length | 80mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| OHN - Minimum Overhang | 20mm |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 140mm |
| ORDCODE | SL-2C A12 140-20 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R7500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSS3_C0200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 9 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-23 10:51:00.000 |
| Hand | N |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | False |
