R 553,15
inc. vat
In stock
SKU
7860860
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days

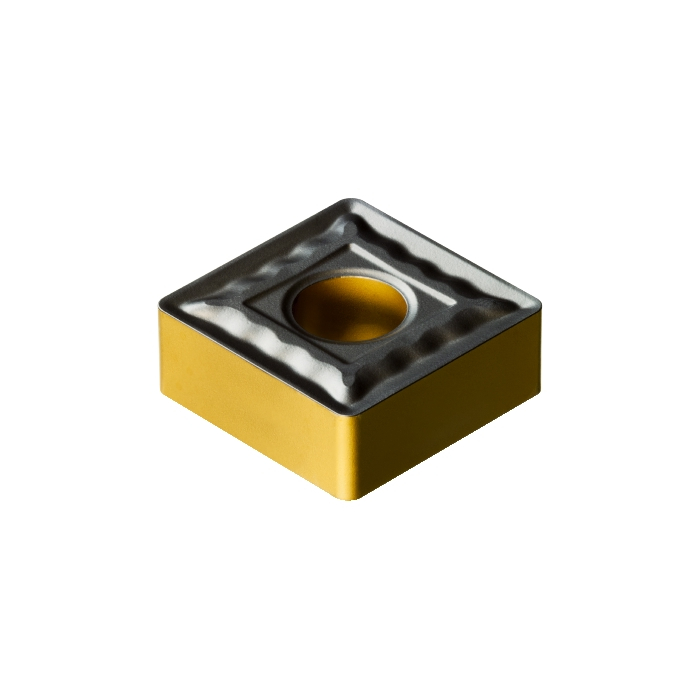

T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 27g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 19.05mm |
RE - Corner Radius | 1.1906mm |
Insert Thickness | 6.35mm |
D1 - Fixing Hole Diameter | 7.925mm |
LE - Cutting Edge Effective Length | 17.85mm |
L - Cutting Edge Length | 19.05mm |
ORDCODE | SNMG 19 06 12-QM 4425 |
CHANGEDATE | 2022-09-22 12:37:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 19 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SN1906_1 |
Grade | 4425 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | QM |
CEDC - Cutting Edge Count | 8 |
WEP - Wiper Edge Property | False |
