Sandvik Coromant TCMT 09 02 04-UF 4415 CoroTurn™ 107 insert for turning
R 165,60
inc. vat
In stock
SKU
7860480

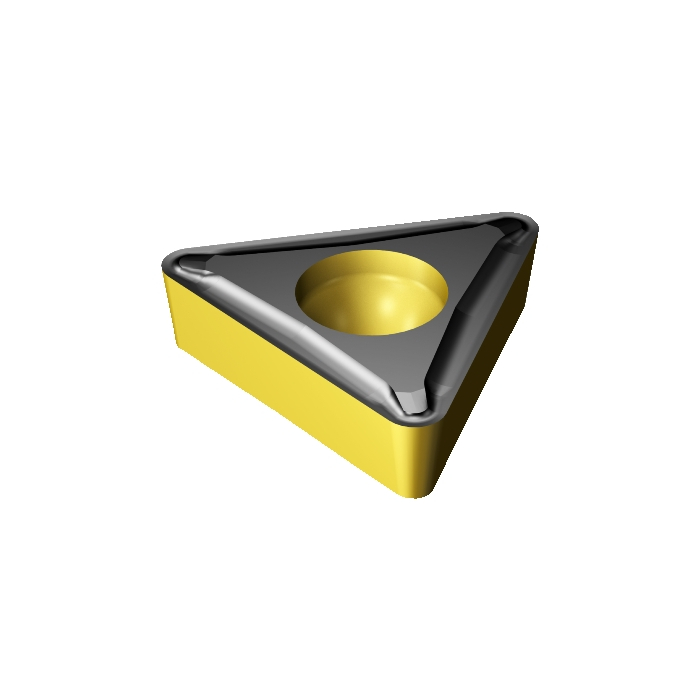

CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.1g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 5.55625mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.5mm |
| LE - Cutting Edge Effective Length | 8.97mm |
| L - Cutting Edge Length | 9.624mm |
| ORDCODE | TCMT 09 02 04-UF 4415 |
| CHANGEDATE | 2022-09-23 22:04:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC0902_1 |
| Grade | 4415 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | UF |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
