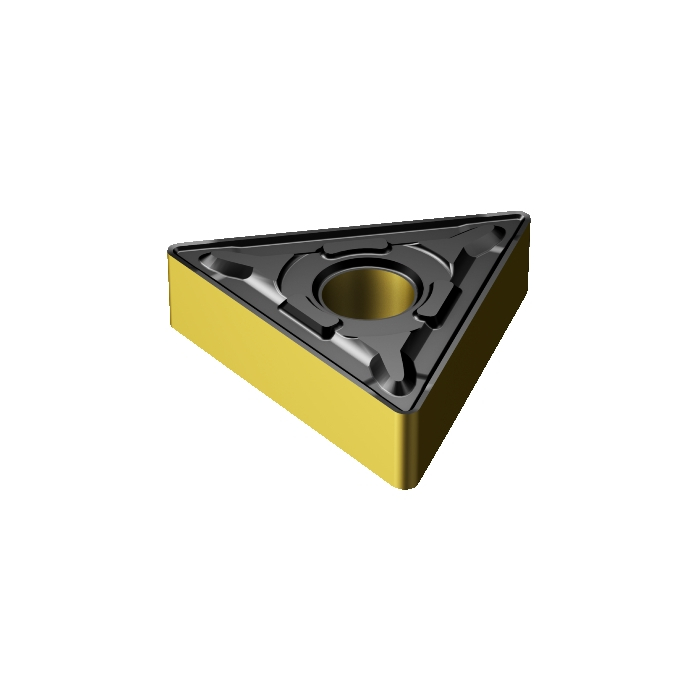

Sandvik Coromant TNMG 33 09 24-PR 4415 T-Max™ P insert for turning

R 1 026,95 inc. vat
In stock
SKU
8021310
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 54.6g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 19.05mm
RE - Corner Radius 2.38125mm
Insert Thickness 9.525mm
D1 - Fixing Hole Diameter 7.925mm
LE - Cutting Edge Effective Length 30.5956mm
L - Cutting Edge Length 32.9956mm
ORDCODE TNMG 33 09 24-PR 4415
CHANGEDATE 2022-09-23 22:13:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code T
SSC - Insert Seat Size Code 33
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TN3309_1
Grade 4415
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PR
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property False
