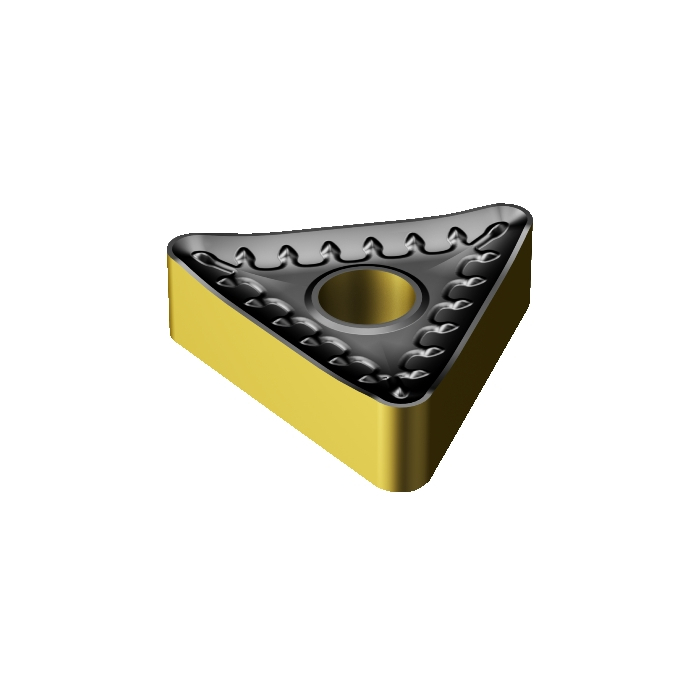

Sandvik Coromant TNMM 22 04 16-QR 4425 T-Max™ P insert for turning
R 300,15
inc. vat
In stock
SKU
7861260
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 11g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 1.5875mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 5.156mm |
| LE - Cutting Edge Effective Length | 20.397mm |
| L - Cutting Edge Length | 21.997mm |
| ORDCODE | TNMM 22 04 16-QR 4425 |
| CHANGEDATE | 2022-09-22 12:37:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 22 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN2204_1 |
| Grade | 4425 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | QR |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
