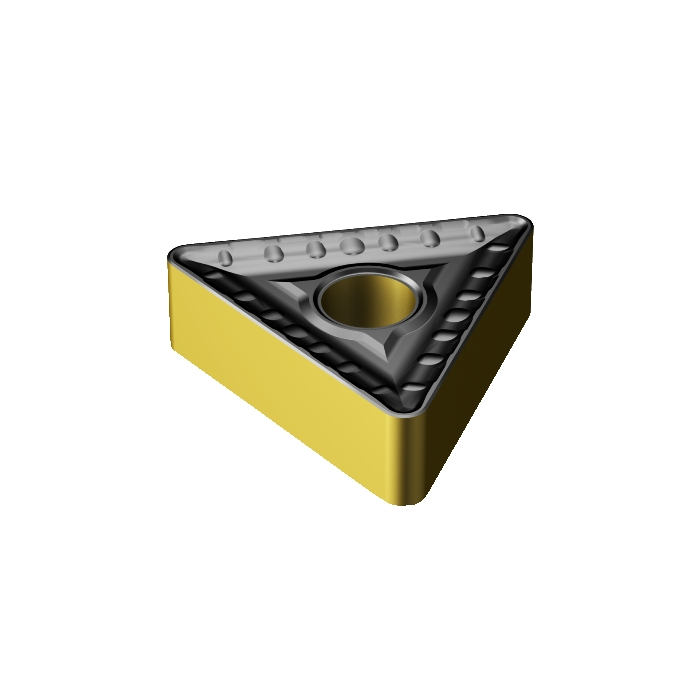

Sandvik Coromant TNMM 27 06 24-HR 4415 T-Max™ P insert for turning
R 518,65
inc. vat
In stock
SKU
8021235
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 23.6g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 15.875mm |
| RE - Corner Radius | 2.38125mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 6.35mm |
| LE - Cutting Edge Effective Length | 25.0963mm |
| L - Cutting Edge Length | 27.4963mm |
| ORDCODE | TNMM 27 06 24-HR 4415 |
| CHANGEDATE | 2022-09-23 22:13:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 27 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN2706_1 |
| Grade | 4415 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | HR |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
