Sandvik Coromant TNMX 11 06-2 4425 Insert for bar peeling
R 587,65
inc. vat
In stock
SKU
8019694
Insert for bar peeling
Reliable nationwide shipping
Delivery in 4 - 5 days

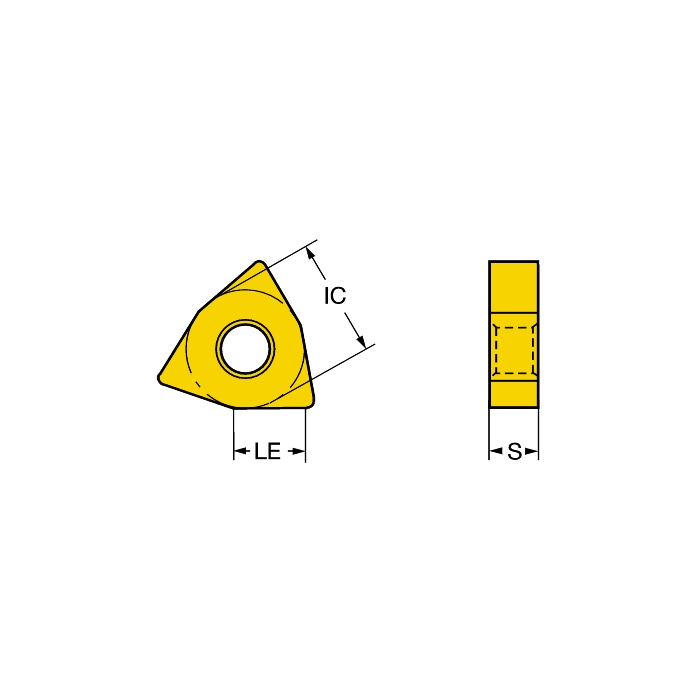

Insert for bar peeling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 20.3g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 15.875mm |
| RE - Corner Radius | 5mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 6.335mm |
| LE - Cutting Edge Effective Length | 8mm |
| L - Cutting Edge Length | 10.86mm |
| KRINS - Major Cutting Edge Angle | 120deg |
| BS - Wiper Edge Length | 8mm |
| APMX - Depth Of Cut Maximum | 2mm |
| KCH - Corner Chamfer | 105deg |
| CHW - Corner Chamfer Width | 7mm |
| ORDCODE | TNMX 11 06-2 4425 |
| CHANGEDATE | 2021-12-17 22:39:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | W |
| SSC - Insert Seat Size Code | 11 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_WN1106_1 |
| Grade | 4425 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 2 |
| CEDC - Cutting Edge Count | 6 |
| WEP - Wiper Edge Property | True |
