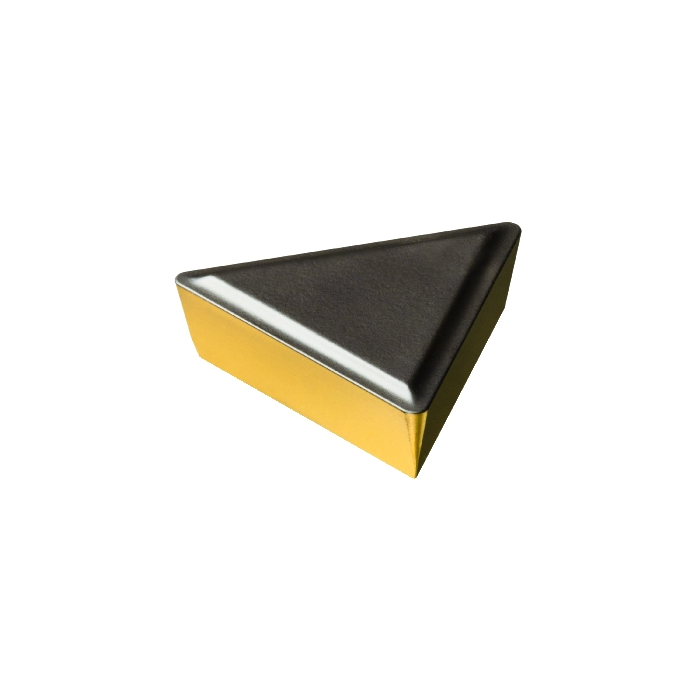

Sandvik Coromant TPMR 09 02 04 4425 T-Max™ S insert for turning
R 146,05
inc. vat
In stock
SKU
8019550
T-Max® S insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.2g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 5.55625mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 2.38125mm |
| LE - Cutting Edge Effective Length | 9.4987mm |
| L - Cutting Edge Length | 9.624mm |
| ORDCODE | TPMR 09 02 04 4425 |
| CHANGEDATE | 2022-09-22 11:53:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TP0902_1 |
| Grade | 4425 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 53 |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
