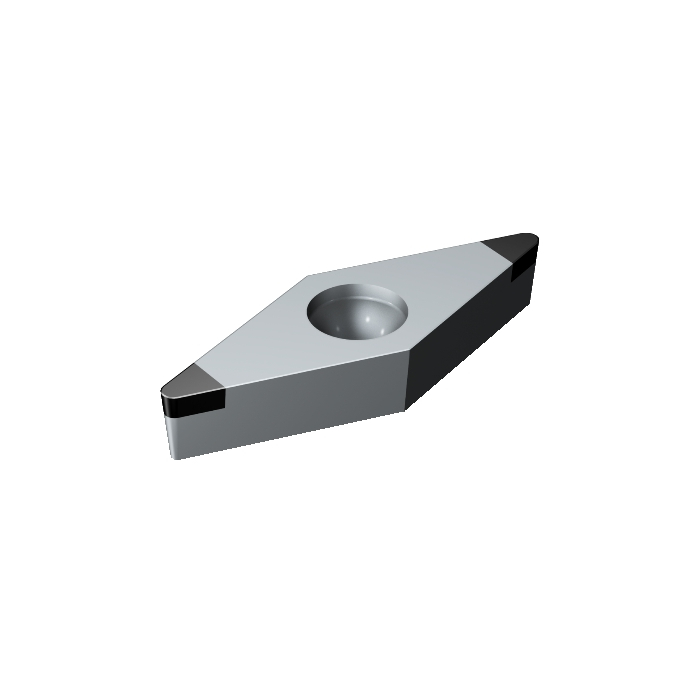

Sandvik Coromant VBGW160408S01020F 7125 CoroTurn™ 107 insert for turning

R 1 208,65 inc. vat
In stock
SKU
7586877
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 8.8g
AN - Clearance Angle Major 5deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.8mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 2.5mm
L - Cutting Edge Length 16.6063mm
BN - Face Land Width 0.1mm
GB - Face Land Angle 20deg
GAN - Insert Rake Angle 0deg
ORDCODE VBGW160408S01020F 7125
CHANGEDATE 2022-09-27 16:20:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code V
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_VB1604_1
Grade 7125
COATING PVD AlTiCrN
SUBSTRATE BC
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
