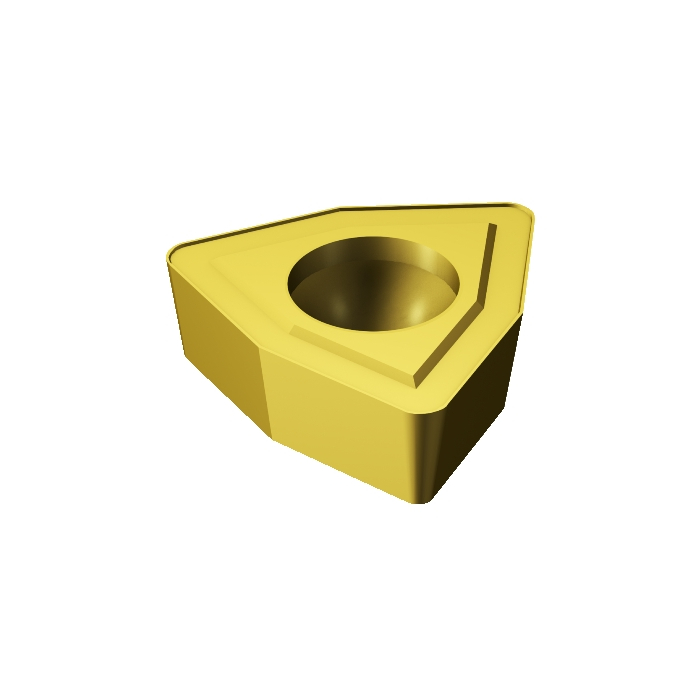

Sandvik Coromant WCMX 03 02 08 R-53 235 Coromant U insert for drilling
R 264,50
inc. vat
In stock
SKU
5756104
Coromant U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant U insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.1g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 5.715mm |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| L - Cutting Edge Length | 3.9093mm |
| GAN - Insert Rake Angle | 18deg |
| ORDCODE | WCMX 03 02 08 R-53 235 |
| CHANGEDATE | 2022-04-06 03:48:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | W |
| SSC - Insert Seat Size Code | 03 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DD0302_1 |
| Grade | 235 |
| COATING | CVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 53 |
| INSUC - Insert Usage Code | P+C |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
