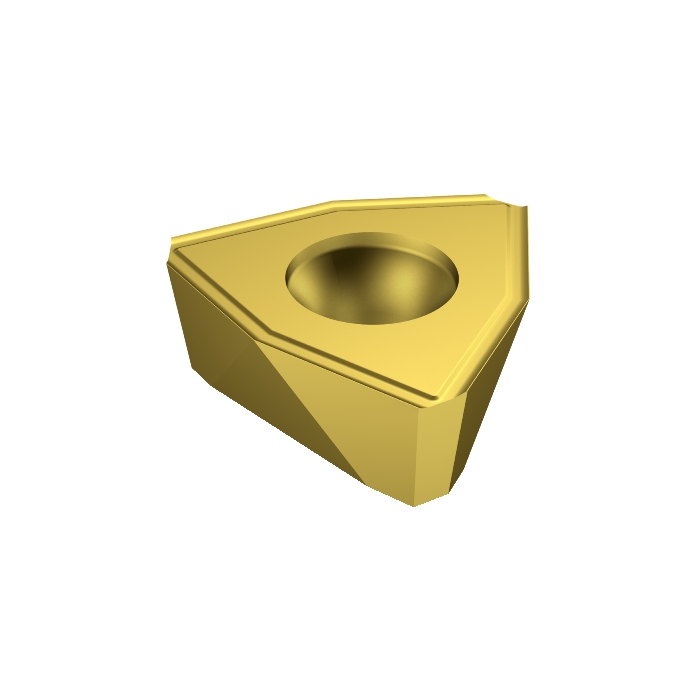

Sandvik Coromant WCMX 08 04 S R-56 235 Coromant U insert for drilling
R 287,50
inc. vat
In stock
SKU
5756227
Coromant U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant U insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 9.1g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 0.4mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 4.3mm |
| L - Cutting Edge Length | 8.6873mm |
| BS - Wiper Edge Length | 2.17mm |
| GAN - Insert Rake Angle | 12deg |
| KCH - Corner Chamfer | 25deg |
| ORDCODE | WCMX 08 04 S R-56 235 |
| CHANGEDATE | 2022-04-06 03:49:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | W |
| SSC - Insert Seat Size Code | 08 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DD0804SR_1 |
| Grade | 235 |
| COATING | CVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 56 |
| INSUC - Insert Usage Code | C |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
