Sandvik Coromant CPMT 09 T3 04-UM 4425 CoroTurn™ 111 insert for turning
Next
Sandvik Coromant WPMT 04 02 04-PM 4425 CoroTurn™ 111 insert for turning
Previous
![Sandvik Coromant CPMT 09 T3 04-UM 4425 CoroTurn™ 111 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/71581c4c2/sandvik-coromant-cpmt-09-t3-04-um-4425-coroturntm-111-insert-for-turning.jpg)
![Sandvik Coromant WPMT 04 02 04-PM 4425 CoroTurn™ 111 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7157959aa/sandvik-coromant-wpmt-04-02-04-pm-4425-coroturntm-111-insert-for-turning.jpg)
R 207,00
inc. vat
In stock
SKU
8019513

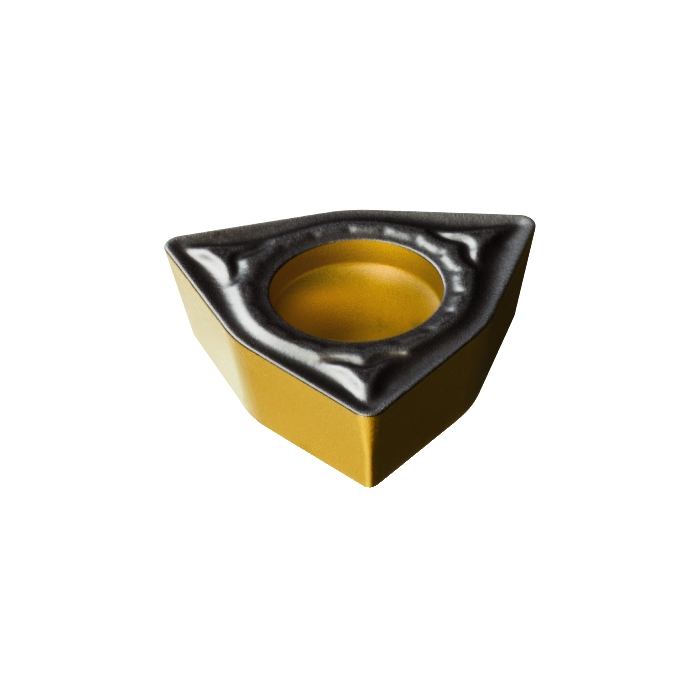

CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1g |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 6.35mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 2.38125mm |
D1 - Fixing Hole Diameter | 2.8mm |
LE - Cutting Edge Effective Length | 3.5437mm |
L - Cutting Edge Length | 4.3437mm |
ORDCODE | WPMT 04 02 08-PM 4425 |
CHANGEDATE | 2022-09-23 22:11:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 04 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_WP0402_1 |
Grade | 4425 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | PM |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
