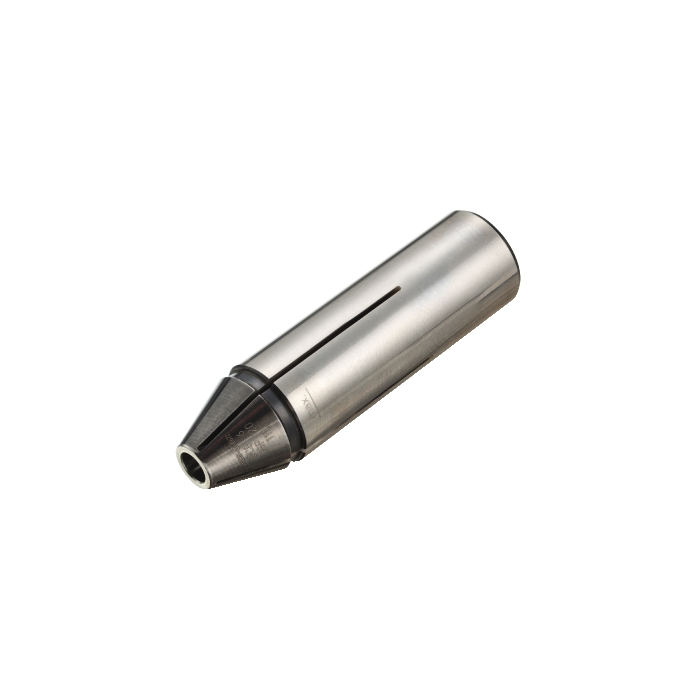

Sandvik Coromant A393.CGP-19 06 72 Cylindrical pencil collet
Next
Sandvik Coromant A393.CGP-19 05 72 Cylindrical pencil collet
R 2 714,00
inc. vat
Out of stock
SKU
5722689
Cylindrical pencil collet
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical pencil collet
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 7.9375mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 72mm |
| BD - Body Diameter | 11mm |
| LB - Body Length | 13.7mm |
| BHTA - Body Half Taper Angle | 16deg |
| WT - Weight Of Item | 0.112kg |
| OAL - Overall Length | 72mm |
| OHX - Maximum Overhang | 21mm |
| LSC - Clamping Length | 51mm |
| ORDCODE | A393.CGP-19 05 72 |
| ADINTMS - Adaptive Interface Machine Direction | M_CLTH2_B0750_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLG_R3125_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 22:22:00.000 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| SEAL - Sealing Property | False |
