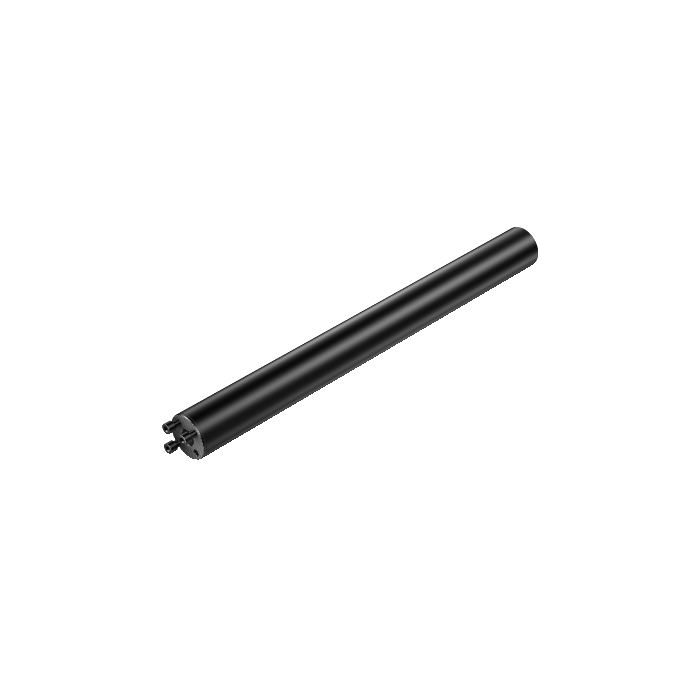

Sandvik Coromant A570-3C D28 23-40 Cylindrical shank to CoroTurn™ SL damped adaptor

Name: Sandvik Coromant A570-3C D28 23-40 Cylindrical shank to CoroTurn™ SL damped adaptor
SKU: 5722981
Price: 57879.50 ZAR
Availability: InStock

Be the first to review this product

R 57 879,50 inc. vat

In stock

SKU

5722981

Cylindrical shank to CoroTurn® SL damped adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank to CoroTurn® SL damped adaptor

More Information

More Information
CP - Coolant Pressure	7000000Pa
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	584.5mm
BD - Body Diameter	40mm
LB - Body Length	347.5mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	17Nm
WT - Weight Of Item	6kg
OAL - Overall Length	584.5mm
OHX - Maximum Overhang	412mm
LSC - Clamping Length	347mm
BAWS - Workpiece Side Body Angle	0deg
OHN - Minimum Overhang	279mm
WF - Functional Width	2.225mm
HF - Functional Height	0mm
LPR - Protruding Length	584.5mm
ORDCODE	A570-3C D28 23-40
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1750_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDSS_C0400_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-05-23 19:18:00.000
Hand	N
CNT - Coolant Entry Thread Size	G 1/2-14
DPC - Damping Property	True
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	False
