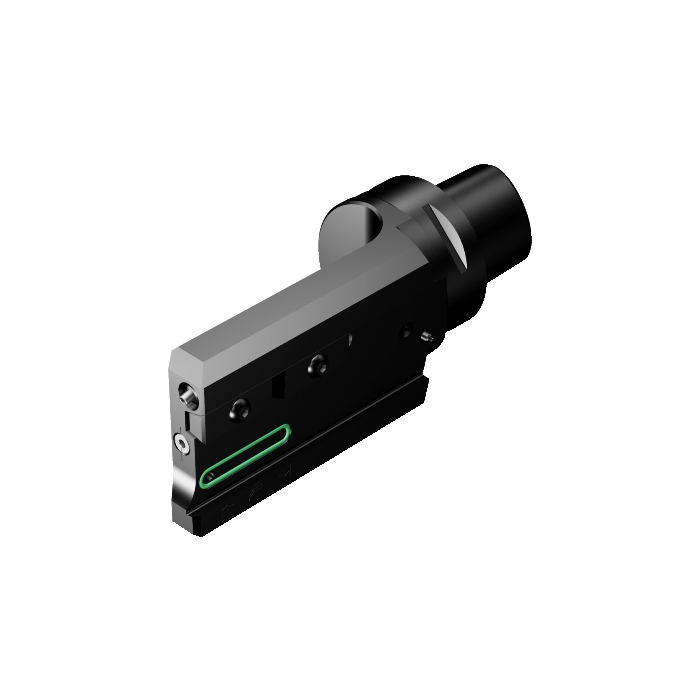

Sandvik Coromant C5-APBR-122-21HP Coromant Capto™ to blade adaptor
R 12 875,40
inc. vat
Out of stock
SKU
7086874
Coromant Capto® to blade adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to blade adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 122mm |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 1.31kg |
| OAL - Overall Length | 152mm |
| OHX - Maximum Overhang | 122mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 26mm |
| HF - Functional Height | 21mm |
| LPR - Protruding Length | 122mm |
| OAH - Overall Height | 48.5mm |
| OAW - Overall Width | 56.5mm |
| RADH - Radial Body Height | 32mm |
| RADW - Radial Body Width | 31mm |
| DIX - Maximum Tool Changer Interference Diameter | 85mm |
| ORDCODE | C5-APBR-122-21HP |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_PMC012_C021R_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 6 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-04 11:24:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | R |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
