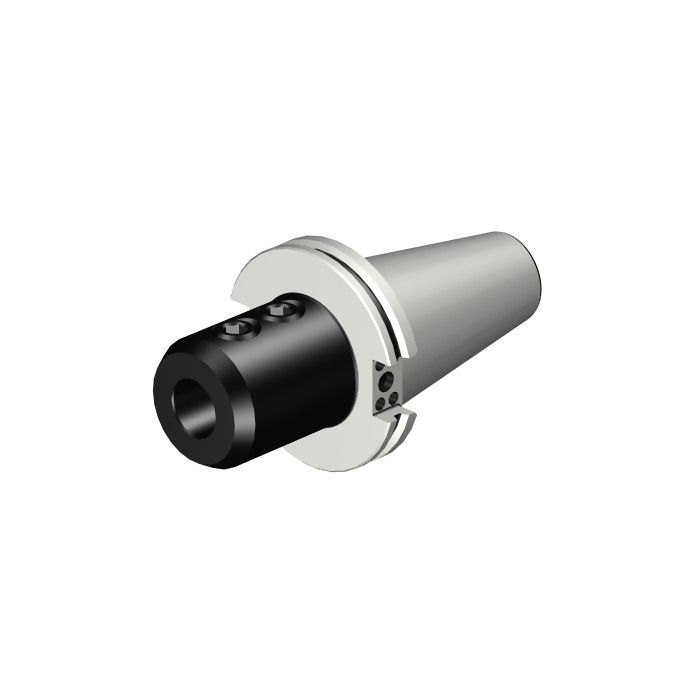

Sandvik Coromant A392.54523-5025085 BIG-PLUS CAT-V to Weldon / ISO 9766 adaptor
R 8 029,30
inc. vat
Out of stock
SKU
6408401
BIG-PLUS CAT-V to Weldon / ISO 9766 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS CAT-V to Weldon / ISO 9766 adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 69.85mm |
| DCON - Connection Diameter | 25.4mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 85mm |
| BD - Body Diameter | 98.4mm |
| LB - Body Length | 85mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 25Nm |
| RPMX - Rotational Speed Maximum | 120001/min |
| WT - Weight Of Item | 3.589kg |
| OAL - Overall Length | 186.8mm |
| OHX - Maximum Overhang | 85mm |
| LSC - Clamping Length | 60mm |
| ORDCODE | A392.54523-5025085 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG37BP_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLISOW_S1000_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | 1"-8 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 10:47:00.000 |
| STDLET - Standard Letter | AD/B |
| STDNO - Standard Number | ASME B5.50 (BIG-PLUS) |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
