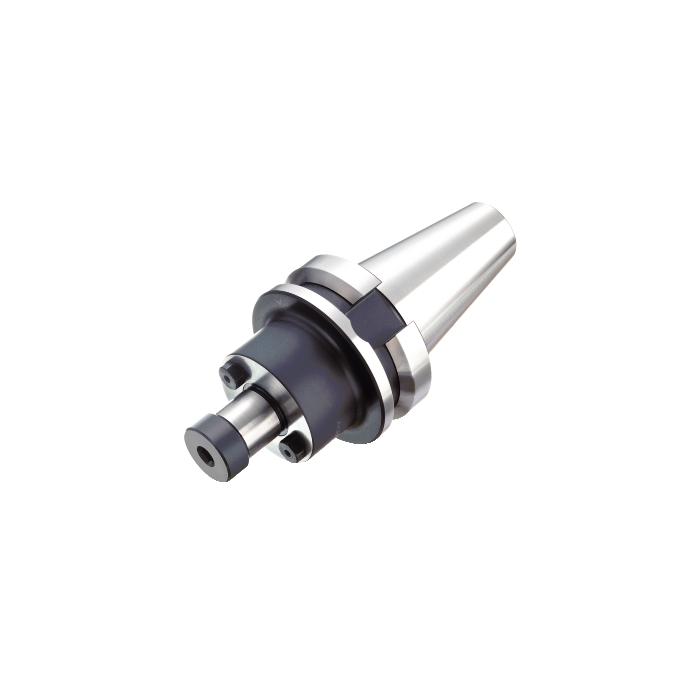

Sandvik Coromant AA2B05-40 19 051 MAS-BT 403 to arbor adaptor

R 1 683,60 inc. vat
Out of stock
SKU
5721131
MAS-BT 403 to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to arbor adaptor
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 44.45mm
DCON - Connection Diameter 19.05mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50.8mm
BD - Body Diameter 44.45mm
LB - Body Length 23.8mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 25Nm
RPMX - Rotational Speed Maximum 180001/min
WT - Weight Of Item 1.333kg
OAL - Overall Length 119.2mm
OHX - Maximum Overhang 50.8mm
ORDCODE AA2B05-40 19 051
ADINTMS - Adaptive Interface Machine Direction M_SKG57_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_FDA1AB1_R7500_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 4
CRKS - Connection Retention Knob Thread Size M16
BMC - Body Material Code 1
CHANGEDATE 2021-12-20 22:40:00.000
STDLET - Standard Letter AD/B
STDNO - Standard Number MAS403-BT
DPC - Damping Property False
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
