Sandvik Coromant MB-07B030-02-10L 1025 CoroCut™ MB solid carbide head for back boring

R 407,10 inc. vat
Out of stock
SKU
6879587

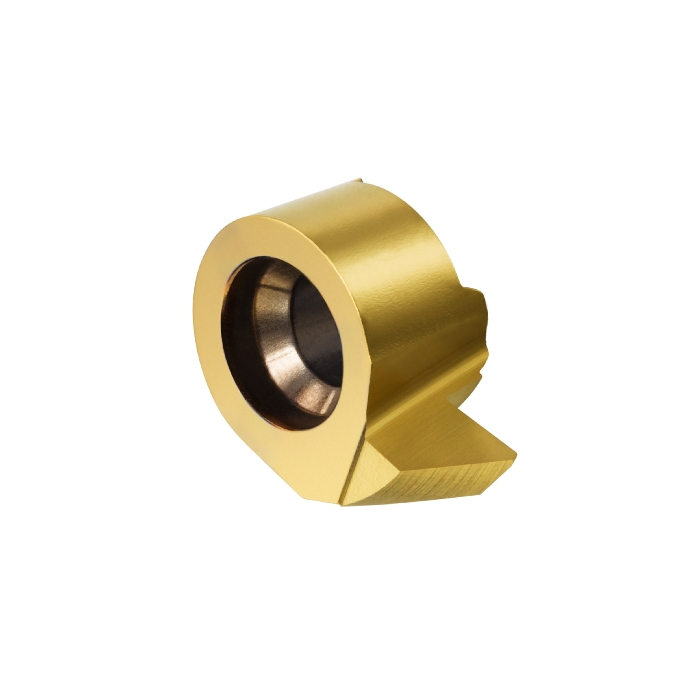

CoroCut® MB solid carbide head for back boring
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for back boring
More Information
DCON - Connection Diameter 7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 1.3mm
WT - Weight Of Item 0.001kg
OAL - Overall Length 4.65mm
OHX - Maximum Overhang 1.3mm
KAPR - Tool Cutting Edge Angle 92deg
RMPX - Maximum Ramping Angle 27deg
DMIN - Minimum Bore Diameter 10mm
WF - Functional Width 5.8mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 15deg
LAMS - Inclination Angle 5.7deg
RE - Corner Radius 0.2mm
LPR - Protruding Length 3.95mm
APMX - Depth Of Cut Maximum 2mm
ORDCODE MB-07B030-02-10L 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMD_C0070_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-06-23 13:24:00.000
Hand L
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
