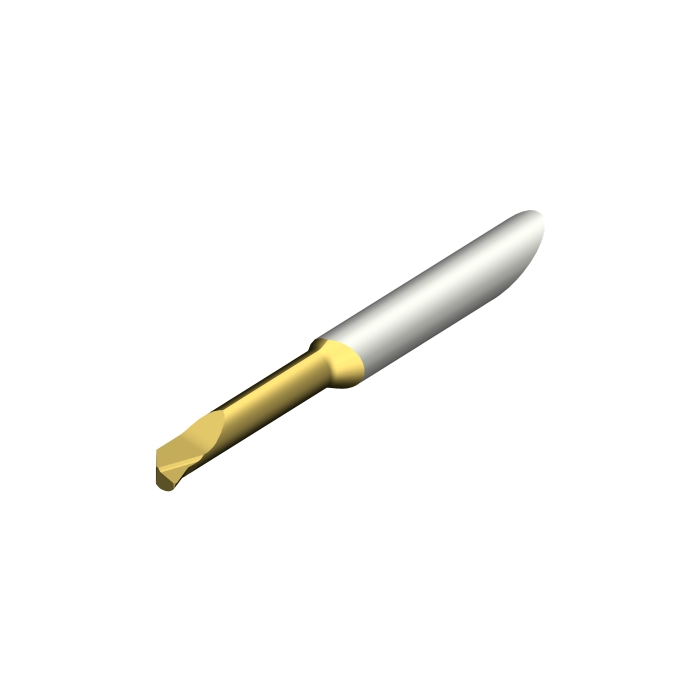

Sandvik Coromant CXS-04T098-15-3215R 1025 CoroTurn™ XS solid carbide tool for turning

R 625,60 inc. vat
In stock
SKU
5726348
CoroTurn® XS solid carbide tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for turning
More Information
DCON - Connection Diameter 4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 32.25mm
WT - Weight Of Item 0kg
OAL - Overall Length 35.71mm
OHX - Maximum Overhang 18mm
LSC - Clamping Length 14.25mm
KAPR - Tool Cutting Edge Angle 98deg
RMPX - Maximum Ramping Angle 17deg
DMIN - Minimum Bore Diameter 3.2mm
WF - Functional Width 1.45mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
RE - Corner Radius 0.15mm
LU - Usable Length 15mm
APMX - Depth Of Cut Maximum 0.2mm
WB - Body Width 2.55mm
ORDCODE CXS-04T098-15-3215R 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMA_F4000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-12-25 09:20:00.000
Hand R
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
