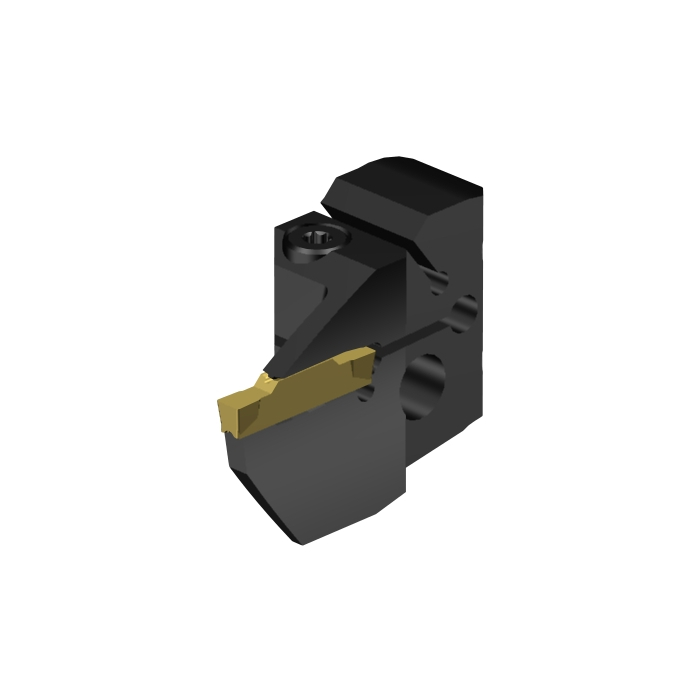

Sandvik Coromant 570-32L123H18B064B CoroCut™ 1-2 head for face grooving

R 4 289,50 inc. vat
In stock
SKU
5764596
CoroCut® 1-2 head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 head for face grooving
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 18mm
TQ - Torque 3Nm
WT - Weight Of Item 0.142kg
OAL - Overall Length 26mm
OHX - Maximum Overhang 16mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 41.1mm
HF - Functional Height 0.1mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.35mm
LPR - Protruding Length 22.2mm
CW - Cutting Width 4mm
CDX - Cutting Depth Maximum 18mm
DAXN - Minimum Axial Groove Outside Diameter 72mm
DAXX - Maximum Axial Groove Outside Diameter 100mm
ORDCODE 570-32L123H18B064B
ADINTMS - Adaptive Interface Machine Direction M_SLHDS_C0320_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:57:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCH2_5
Hand L
MIID - Master Insert Identification N123H2-0400-0004-TF
SSC - Insert Seat Size Code H
CICT - Cutting Item Count 1
AXGSUP - Axial Groove Support Direction 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
