R 4 289,50
inc. vat
In stock
SKU
5764618
CoroCut® 1-2 head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days

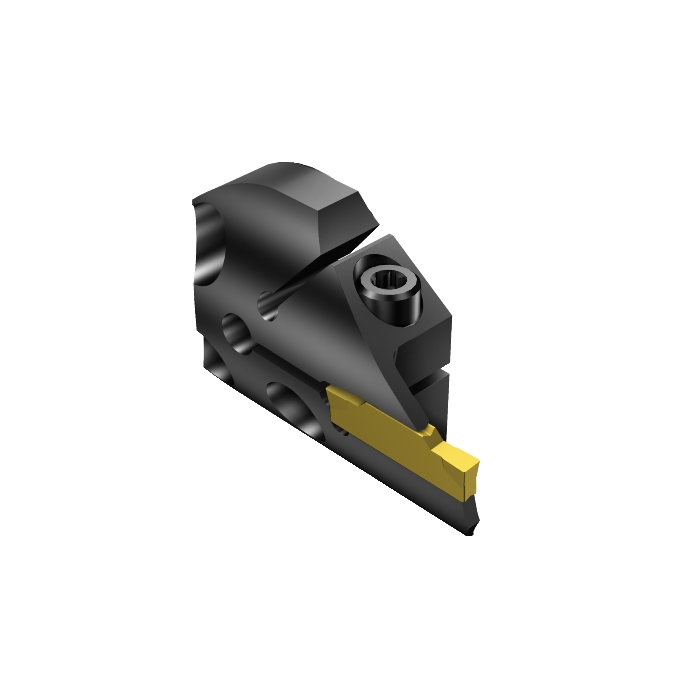

CoroCut® 1-2 head for face grooving
CP - Coolant Pressure | 4000000Pa |
---|---|
DCON - Connection Diameter | 32mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 18mm |
TQ - Torque | 3Nm |
WT - Weight Of Item | 0.14kg |
OAL - Overall Length | 21.8mm |
OHX - Maximum Overhang | 16mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 41.1mm |
HF - Functional Height | 0.1mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
CW - Cutting Width | 4mm |
CDX - Cutting Depth Maximum | 18mm |
DAXN - Minimum Axial Groove Outside Diameter | 308mm |
DAXX - Maximum Axial Groove Outside Diameter | 800mm |
ORDCODE | 570-32L123H18B300A |
ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0320_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 14:58:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCH2_5 |
Hand | L |
MIID - Master Insert Identification | N123H2-0400-0004-TF |
SSC - Insert Seat Size Code | H |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
