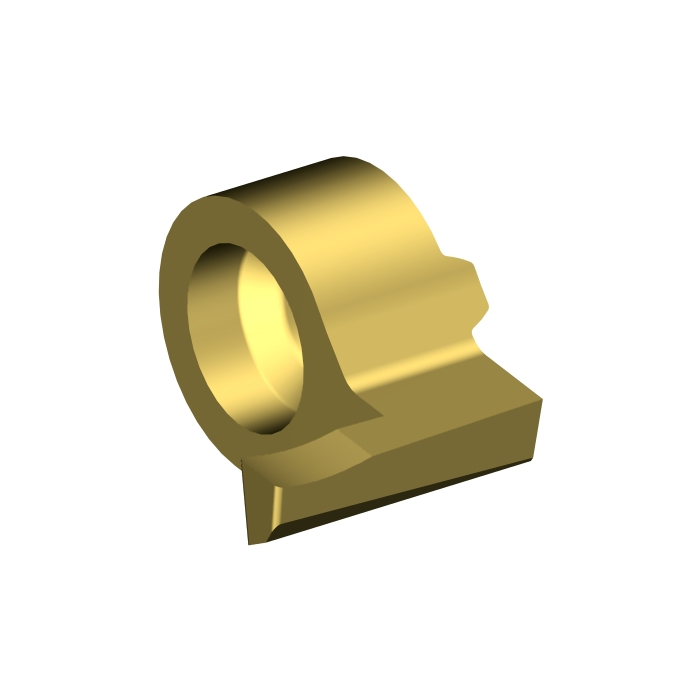

Sandvik Coromant MB-09FA200-02-14R 1025 CoroCut™ MB solid carbide head for face grooving

R 725,65 inc. vat
In stock
SKU
5735944
CoroCut® MB solid carbide head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for face grooving
More Information
DCON - Connection Diameter 9mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 10.3mm
WT - Weight Of Item 7g
OAL - Overall Length 11mm
OHX - Maximum Overhang 10.3mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 9mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
CW - Cutting Width 2mm
CWTOLL - Cutting Width Lower Tolerance 0mm
CWTOLU - Cutting Width Upper Tolerance 0.05mm
REL - Corner Radius Left 0.2mm
RER - Corner Radius Right 0.2mm
CDX - Cutting Depth Maximum 5mm
RETOLL - Corner Radius Lower Tolerance -0.02mm
RETOLU - Corner Radius Upper Tolerance 0.02mm
DAXN - Minimum Axial Groove Outside Diameter 14mm
ORDCODE MB-09FA200-02-14R 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMD_CF09R_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-11-18 11:48:00.000
Hand R
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 1
AXGSUP - Axial Groove Support Direction 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
