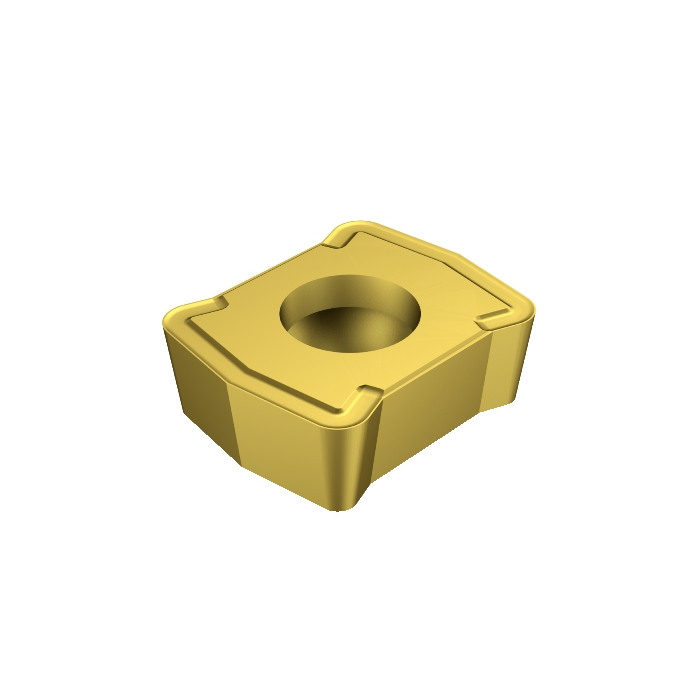

Sandvik Coromant LCMX 03 03 08-53 235 Coromant U insert for drilling
Next
Sandvik Coromant LCMX 03 03 08-53 H13A Coromant U insert for drilling
Previous
Sandvik Coromant LCMX 03 03 08-53 H13A Coromant U insert for drilling
Previous
Sandvik Coromant LCMX 03 03 08-53 1020 Coromant U insert for drilling
R 235,75
inc. vat
In stock
SKU
5735048
Coromant U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant U insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.7g |
| AN - Clearance Angle Major | 7deg |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 3.175mm |
| D1 - Fixing Hole Diameter | 2.5mm |
| BN - Face Land Width | 0.07mm |
| GB - Face Land Angle | 0deg |
| GAN - Insert Rake Angle | 18deg |
| ORDCODE | LCMX 03 03 08-53 1020 |
| CHANGEDATE | 2022-09-21 12:26:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 03 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DA0303_1 |
| Grade | 1020 |
| COATING | PVD TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 53 |
| INSUC - Insert Usage Code | P+C |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
