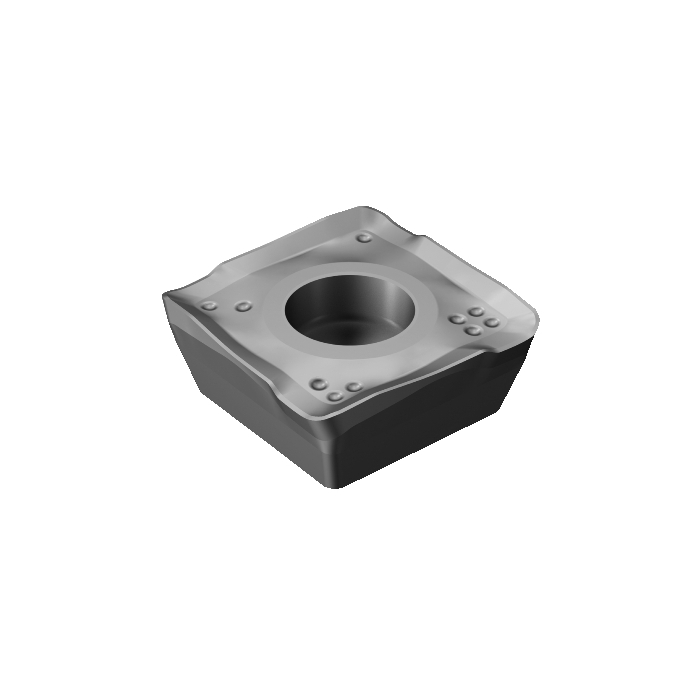

Sandvik Coromant 490R-08T312M-PM 1130 CoroMill™ 490 insert for milling
R 326,60
inc. vat
In stock
SKU
6971888
CoroMill® 490 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 2.2g |
| AN - Clearance Angle Major | 15deg |
| IC - Inscribed Circle Diameter | 8.5mm |
| RE - Corner Radius | 1.2mm |
| Insert Thickness | 3.3mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 5.6mm |
| L - Cutting Edge Length | 8.5mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 0.85mm |
| APMX - Depth Of Cut Maximum | 5.5mm |
| ORDCODE | 490R-08T312M-PM 1130 |
| CHANGEDATE | 2022-09-23 20:23:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 08 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MI08T3_1 |
| Grade | 1130 |
| COATING | PVD AlTiCrN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PM |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
