R 581,90
inc. vat
In stock
SKU
6878219

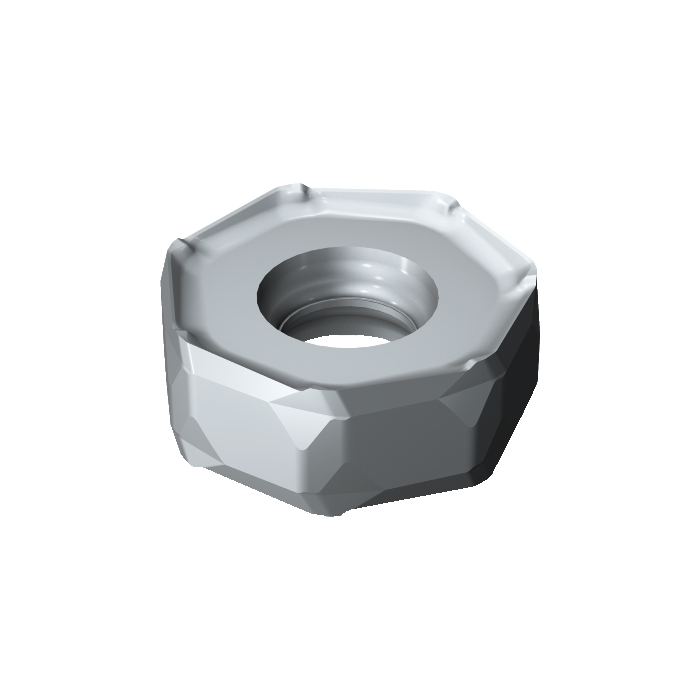

CoroMill® 745 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 745 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.032kg |
AN - Clearance Angle Major | 13deg |
IC - Inscribed Circle Diameter | 21mm |
RE - Corner Radius | 1mm |
Insert Thickness | 9mm |
D1 - Fixing Hole Diameter | 8.3mm |
LE - Cutting Edge Effective Length | 8.9mm |
L - Cutting Edge Length | 10.113067mm |
KRINS - Major Cutting Edge Angle | 42deg |
BN - Face Land Width | 0.2mm |
GB - Face Land Angle | -31deg |
BS - Wiper Edge Length | 0.3mm |
GAN - Insert Rake Angle | 44deg |
APMX - Depth Of Cut Maximum | 5.2mm |
KCH - Corner Chamfer | 17deg |
CHW - Corner Chamfer Width | 1.3mm |
BSR - Wiper Edge Radius | 25mm |
ORDCODE | 745R-2109E-M30 1130 |
CHANGEDATE | 2022-09-23 19:31:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 21 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NN2109_1 |
Grade | 1130 |
COATING | PVD AlTiCrN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | M30 |
CEDC - Cutting Edge Count | 14 |
WEP - Wiper Edge Property | True |
