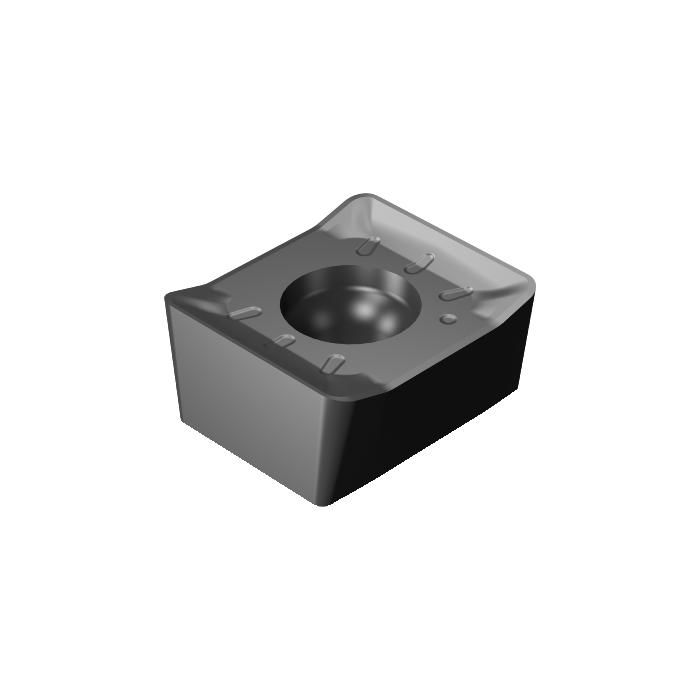

Sandvik Coromant N331.1A-115008E-M30 3040 CoroMill™ 331 insert for side & facemilling

R 341,55 inc. vat
In stock
SKU
7295518
CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 7g
AN - Clearance Angle Major 0deg
RE - Corner Radius 0.8mm
Insert Thickness 5mm
D1 - Fixing Hole Diameter 4.6mm
LE - Cutting Edge Effective Length 10.7mm
L - Cutting Edge Length 11.5mm
KRINS - Major Cutting Edge Angle 90deg
BN - Face Land Width 0.18mm
GB - Face Land Angle -6deg
BS - Wiper Edge Length 1.2mm
GAN - Insert Rake Angle 13deg
APMX - Depth Of Cut Maximum 10.7mm
W1 - Insert Width 11.5mm
ORDCODE N331.1A-115008E-M30 3040
CHANGEDATE 2022-09-23 20:40:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MW11_1
Grade 3040
COATING CVD TiCN+Al2O3
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation M30
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property True
