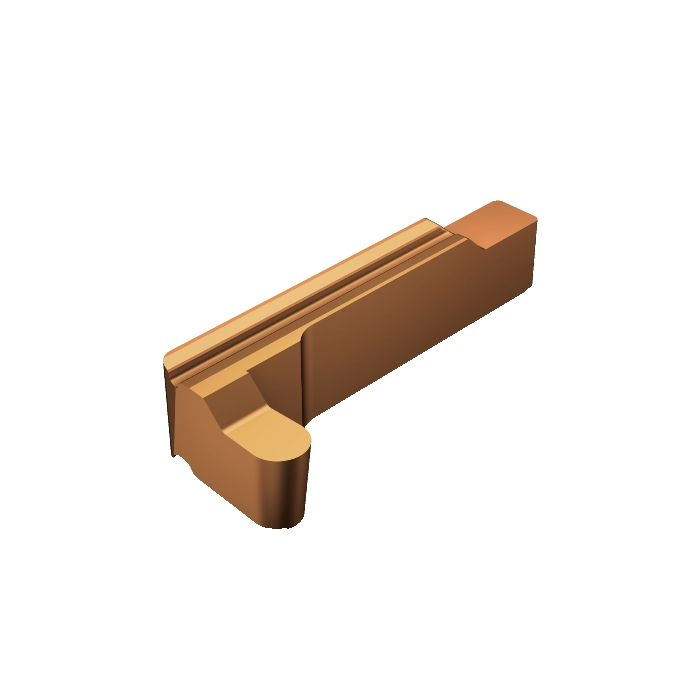

Sandvik Coromant LG123H1-0400-0020-RS1115 CoroCut™ 1-2 insert for profiling
R 749,80
inc. vat
In stock
SKU
5733105
CoroCut® 1-2 insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for profiling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 7.9g |
| KAPR - Tool Cutting Edge Angle | 92.5deg |
| RMPX - Maximum Ramping Angle | 90deg |
| DMIN - Minimum Bore Diameter | 44mm |
| BAMS - Machine Side Body Angle | 90deg |
| AN - Clearance Angle Major | 7deg |
| RE - Corner Radius | 2mm |
| Insert Thickness | 4.35mm |
| CW - Cutting Width | 4mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
| GAN - Insert Rake Angle | 0deg |
| CDX - Cutting Depth Maximum | 6mm |
| APMX - Depth Of Cut Maximum | 1.8mm |
| RETOLL - Corner Radius Lower Tolerance | -0.05mm |
| RETOLU - Corner Radius Upper Tolerance | 0.05mm |
| DAXN - Minimum Axial Groove Outside Diameter | 104mm |
| ORDCODE | LG123H1-0400-0020-RS1115 |
| CHANGEDATE | 2022-09-07 11:06:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 9 |
| SSC - Insert Seat Size Code | HX |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCHX1_1 |
| Grade | 1115 |
| COATING | PVD TiAlN+TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | RS |
| CEDC - Cutting Edge Count | 1 |
