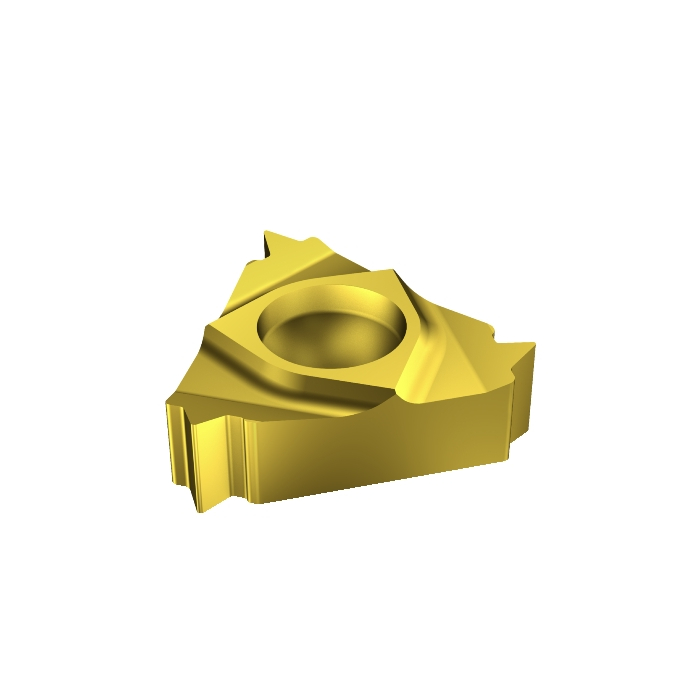

Sandvik Coromant L166.0L-11MM01-075 1020 T-Max™ U-Lock insert for thread turning

R 424,35 inc. vat
In stock
SKU
5734436
T-Max® U-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock insert for thread turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 1.8g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 6.35mm
Insert Thickness 3.175mm
D1 - Fixing Hole Diameter 2.8mm
HA - Theoretical Thread Height 0.47mm
HB - Thread Height Difference 0.04mm
TP - Thread Pitch 0.75mm
PDX - Profile Distance Ex 0.6mm
PDY - Profile Distance Ey 0.68mm
ORDCODE L166.0L-11MM01-075 1020
CHANGEDATE 2022-06-23 10:02:00.000
STDNO - Standard Number ISO 965-1998
Hand L
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code T
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_TBI11L_1
Grade 1020
COATING PVD TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation A
THFT - Thread Form Type M60
TPT - Thread Profile Type F
TTP - Thread Type INT
TCTR - Thread Tolerance Class IT 6
CEDC - Cutting Edge Count 3
NT - Tooth Count 1
