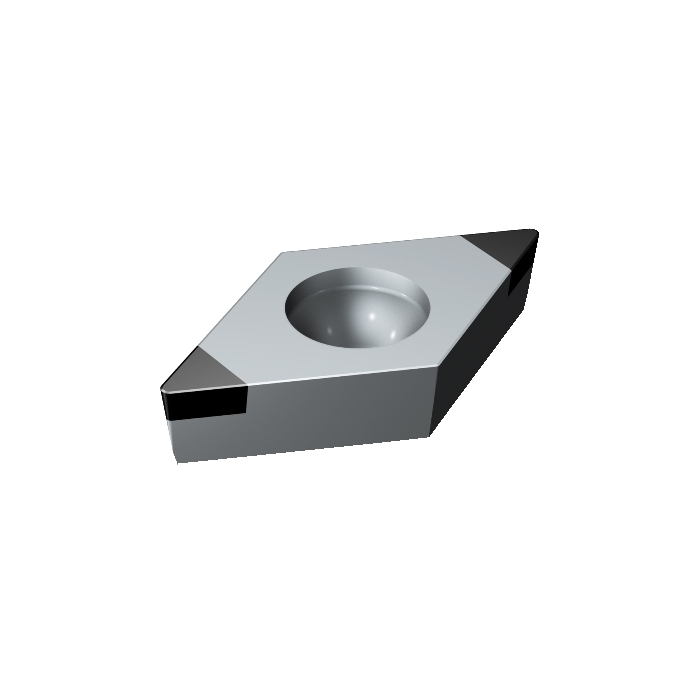

Sandvik Coromant DCGW11T308S01530F 7015 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant CNGA120412S02035A 7015 T-Max™ P insert for turning
Previous
R 1 137,35
inc. vat
In stock
SKU
5767697
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 4.6g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.4mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 2.9mm |
L - Cutting Edge Length | 11.6279mm |
BN - Face Land Width | 0.15mm |
GB - Face Land Angle | 30deg |
ORDCODE | DCGW11T304S01530F 7025 |
CHANGEDATE | 2021-12-17 20:16:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | D |
SSC - Insert Seat Size Code | 11 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DC11T3_1 |
Grade | 7025 |
SUBSTRATE | BL |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | False |
