Sandvik Coromant 881-D1450L20-02 CoroDrill® 881 indexable insert drill
Next
Sandvik Coromant 881-D1400L20-04 CoroDrill® 881 indexable insert drill
Previous
![Sandvik Coromant 881-D1450L20-02 CoroDrill® 881 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7384748b8/sandvik-coromant-881-d1450l20-02-corodrillr-881-indexable-insert-drill.jpg)
![Sandvik Coromant 881-D1400L20-04 CoroDrill® 881 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/73845d7ad/sandvik-coromant-881-d1400l20-04-corodrillr-881-indexable-insert-drill.jpg)
R 10 098,15
inc. vat
In stock
SKU
5962214
CoroDrill® 881 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days

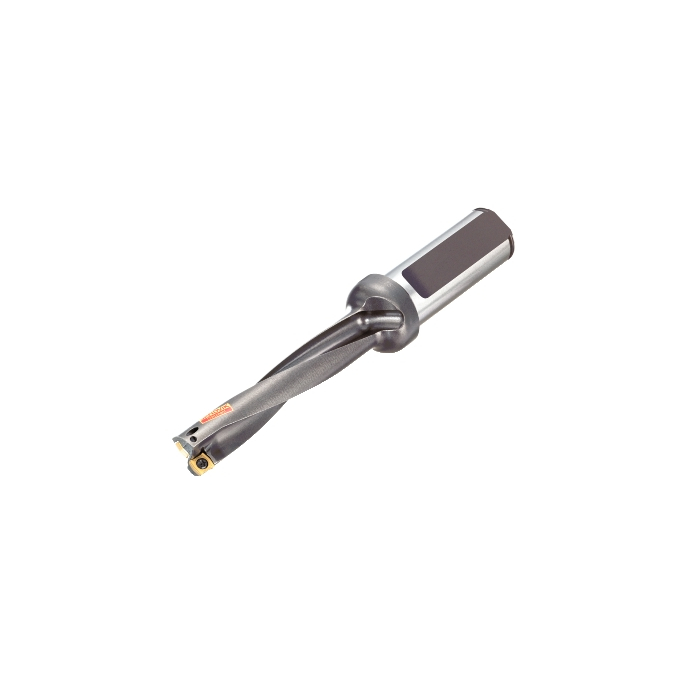

CoroDrill® 881 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 20mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 85.7276mm |
BD - Body Diameter | 20mm |
LB - Body Length | 73mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 135001/min |
WT - Weight Of Item | 225.3g |
OAL - Overall Length | 136mm |
OHX - Maximum Overhang | 85.7276mm |
LSC - Clamping Length | 50mm |
KAPR - Tool Cutting Edge Angle | 78deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 2.38125mm |
H - Shank Height | 18.2mm |
LU - Usable Length | 70mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 1mm |
DC - Cutting Diameter | 14mm |
ULDR - Usable Length Diameter Ratio | 5 |
TCHAL - Achievable Hole Tolerance Lower | -0.1mm |
TCHAU - Achievable Hole Tolerance Upper | 0.4mm |
PL - Point Length | 0.2724mm |
SIG - Point Angle | 156deg |
ORDCODE | 881-D1400L20-05 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_G2000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-31 01:13:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DA0202P_2 |
Hand | R |
MIID - Master Insert Identification | 881-02 02 04M-C-GM1 |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 02 |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
