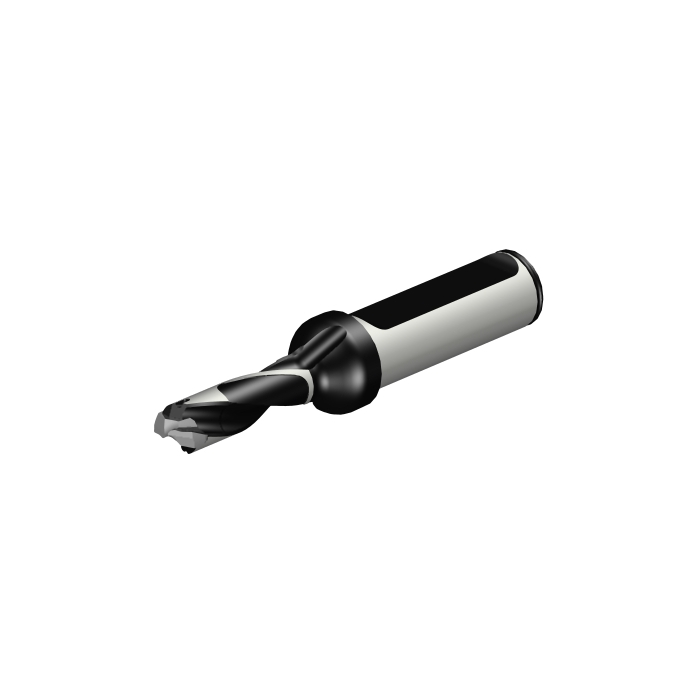

Sandvik Coromant 870-1050-7LX063-3 CoroDrill® 870 exchangeable tip drill

R 4 284,90 inc. vat
Out of stock
SKU
6035607
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 15.875mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 4.51mm
BD - Body Diameter 10.3mm
LB - Body Length 36mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.6Nm
RPMX - Rotational Speed Maximum 330001/min
WT - Weight Of Item 100g
OAL - Overall Length 97mm
OHX - Maximum Overhang 47.31mm
LSC - Clamping Length 48mm
Insert Thickness 4.26mm
H - Shank Height 13.9mm
LU - Usable Length 34.67mm
INSL - Insert Length 6.2mm
DC - Cutting Diameter 10.9mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 10.99mm
ULDR - Usable Length Diameter Ratio 3.180733944954
PL - Point Length 1.69mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 10.5mm
ORDCODE 870-1050-7LX063-3
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_R6250_2
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 14:49:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK07_1
Hand R
MIID - Master Insert Identification 870-1090-7-PM
SSC - Insert Seat Size Code 7
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H9
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
