Sandvik Coromant 870-1900-19LX1-3 CoroDrill® 870 exchangeable tip drill Previous Sandvik Coromant 870-1900-19LX1-3 CoroDrill® 870 exchangeable tip drill

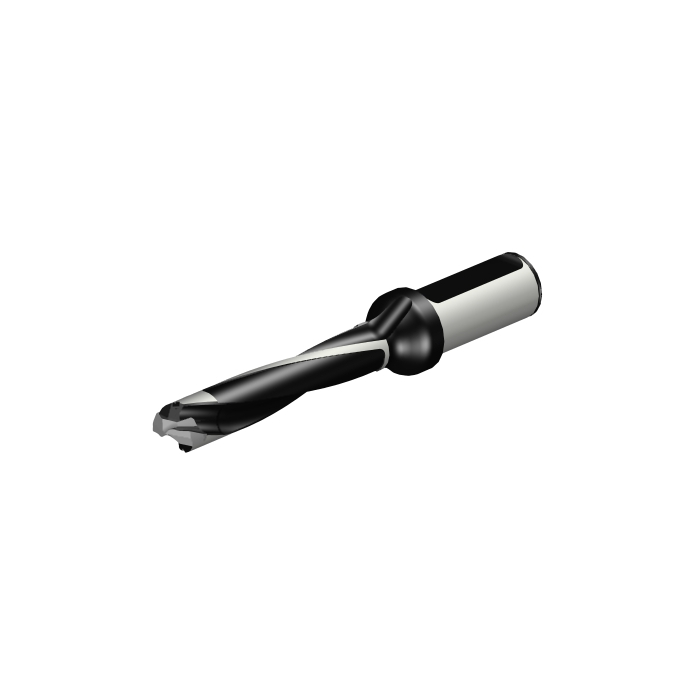

Sandvik Coromant 870-1900-19LX1-5 CoroDrill® 870 exchangeable tip drill

R 7 431,30 inc. vat
In stock
SKU
6035746
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 25.4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 8.88mm
BD - Body Diameter 18.6mm
LB - Body Length 106mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 1.2Nm
RPMX - Rotational Speed Maximum 135001/min
WT - Weight Of Item 0.404kg
OAL - Overall Length 182mm
OHX - Maximum Overhang 122.98mm
LSC - Clamping Length 56mm
Insert Thickness 6.86mm
H - Shank Height 23.4mm
LU - Usable Length 102.99mm
INSL - Insert Length 11.9mm
DC - Cutting Diameter 19.9mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 19.99mm
ULDR - Usable Length Diameter Ratio 5.175376884422
PL - Point Length 3.02mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 19mm
ORDCODE 870-1900-19LX1-5
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_S1000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 14:50:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK19_1
Hand R
MIID - Master Insert Identification 870-1990-19-PM
SSC - Insert Seat Size Code 19
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H9
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
