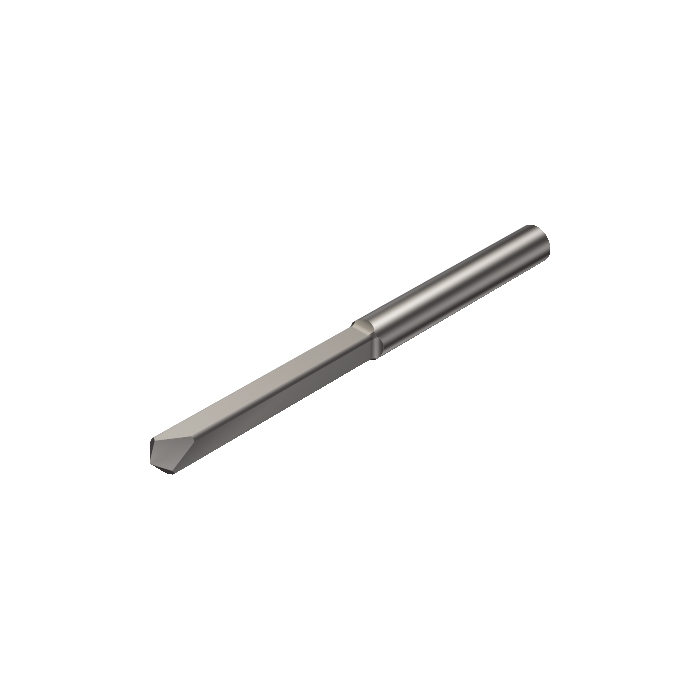

Sandvik Coromant HC 4 Hard cut drill Hard cut drill

R 603,75 inc. vat
In stock
SKU
5732739
Hard cut drill
Reliable nationwide shipping
Delivery in 4 - 5 days
Hard cut drill
More Information
DCON - Connection Diameter 4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 43.8mm
BD - Body Diameter 5mm
LB - Body Length 20.2887mm
BHTA - Body Half Taper Angle 0deg
RPMX - Rotational Speed Maximum 500001/min
WT - Weight Of Item 10.2g
OAL - Overall Length 45mm
OHX - Maximum Overhang 20mm
LSC - Clamping Length 25mm
GAMO - Orthogonal Rake Angle 0deg
LU - Usable Length 14mm
DC - Cutting Diameter 4mm
FHA - Flute Helix Angle 0deg
ULDR - Usable Length Diameter Ratio 3.5
PL - Point Length 1.2mm
LCF - Chip Flute Length 20mm
SIG - Point Angle 120deg
ORDCODE HC 4
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F4000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 11:41:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
SUBSTRATE HW
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H13
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
