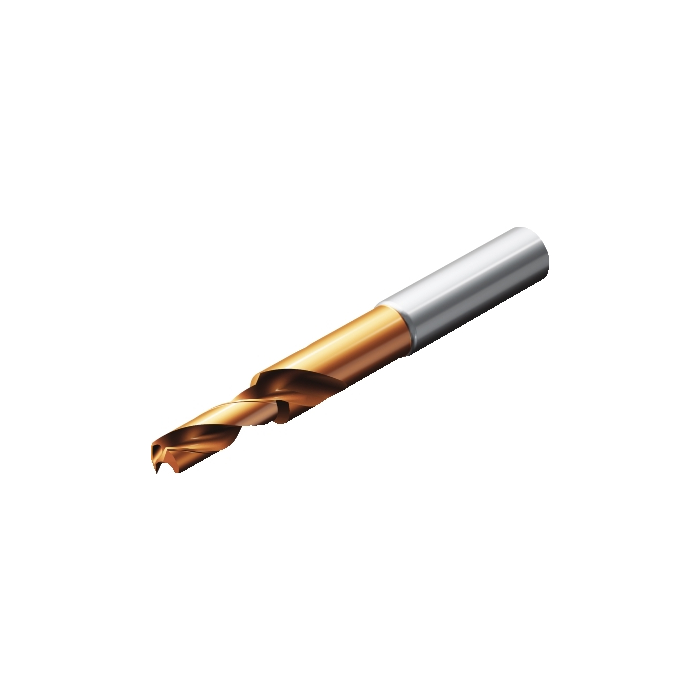

Sandvik Coromant 860.2-0660-020A1-PM 4234 CoroDrill® 860 solid carbide step and chamfer drill

R 3 053,25 inc. vat
In stock
SKU
6040715
CoroDrill® 860 solid carbide step and chamfer drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860 solid carbide step and chamfer drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 10mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 87.9mm
RPMX - Rotational Speed Maximum 500001/min
WT - Weight Of Item 0.08kg
OAL - Overall Length 89mm
OHX - Maximum Overhang 47.92mm
LSC - Clamping Length 40mm
GAMO - Orthogonal Rake Angle 18.67deg
LU - Usable Length 22.2mm
DC - Cutting Diameter 8.9mm
FHA - Flute Helix Angle 27.5deg
PL - Point Length 1.1mm
LCF - Chip Flute Length 39mm
SIG - Point Angle 147deg
SDL - Step Diameter Length 20mm
STA - Step Included Angle 90deg
ORDCODE 860.2-0660-020A1-PM 4234
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 2
CHANGEDATE 2022-03-01 01:16:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 4234
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
ZEFP - Peripheral Effective Cutting Edge Count 2
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
