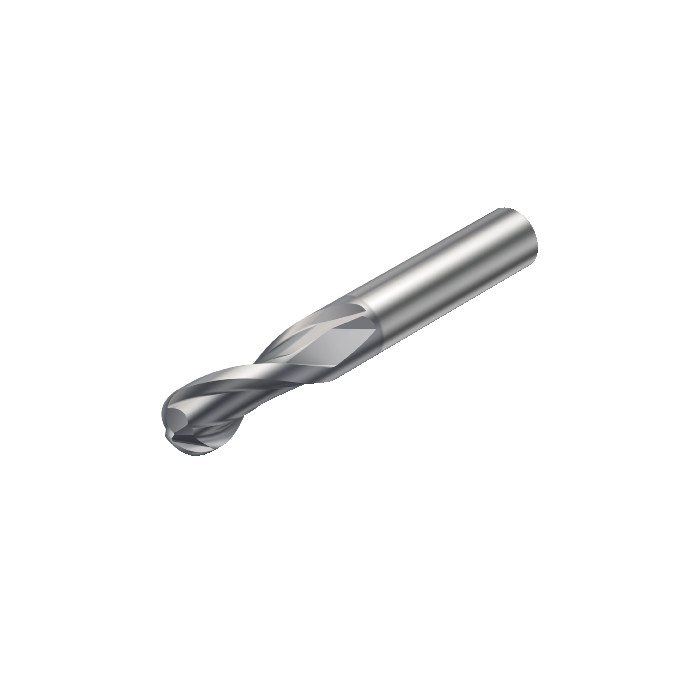

Sandvik Coromant 1B230-2000-XA 1630 CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant 1B230-2000-XA 1630 CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 6259435
Price: 5754.60 ZAR
Availability: InStock

Be the first to review this product

R 5 754,60 inc. vat

In stock

SKU

6259435

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	104mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.403kg
OAL - Overall Length	104mm
OHX - Maximum Overhang	54mm
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	10mm
LU - Usable Length	32mm
APMX - Depth Of Cut Maximum	32mm
DC - Cutting Diameter	20mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	1.6
ORDCODE	1B230-2000-XA 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G2000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-09-13 12:06:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD AlCrN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
