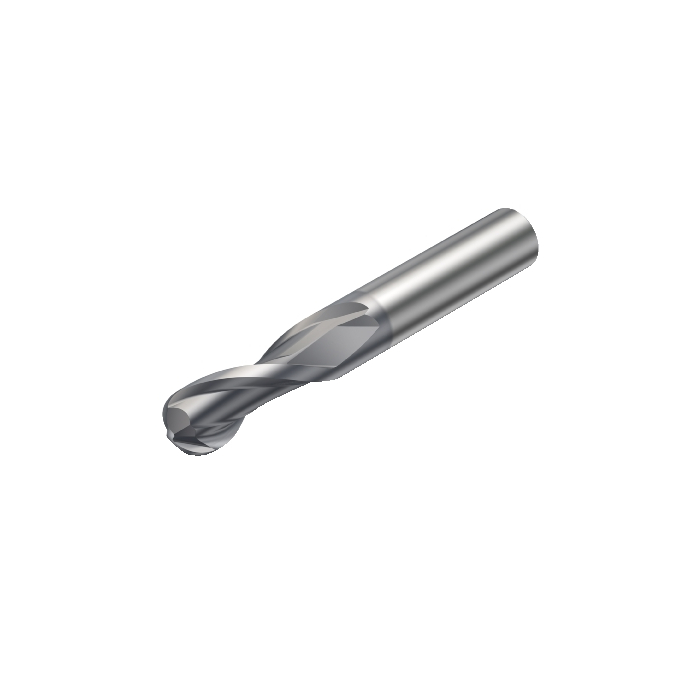

Sandvik Coromant 2B230-0200-NA N20C CoroMill™ Plura solid carbide ball nose end mill for Profiling
Next
Sandvik Coromant 2B230-1000-NA N20C CoroMill™ Plura solid carbide ball nose end mill for Profiling
Previous
R 6 204,25
inc. vat
In stock
SKU
6259965
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
DCON - Connection Diameter | 12mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 83mm |
RPMX - Rotational Speed Maximum | 608001/min |
WT - Weight Of Item | 0.127kg |
OAL - Overall Length | 83mm |
OHX - Maximum Overhang | 38mm |
RMPX - Maximum Ramping Angle | 15deg |
RE - Corner Radius | 6mm |
LU - Usable Length | 22mm |
APMX - Depth Of Cut Maximum | 22mm |
DC - Cutting Diameter | 12mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 1.5deg |
PSIR - Tool Lead Angle | 0deg |
ULDR - Usable Length Diameter Ratio | 1.833333333333 |
ORDCODE | 2B230-1200-NA N20C |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1200_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 05:15:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | N20C |
COATING | CVD Sp3 |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
