Sandvik Coromant RA216.42-2430-AK12G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling

R 3 906,55 inc. vat
Out of stock
SKU
5739570

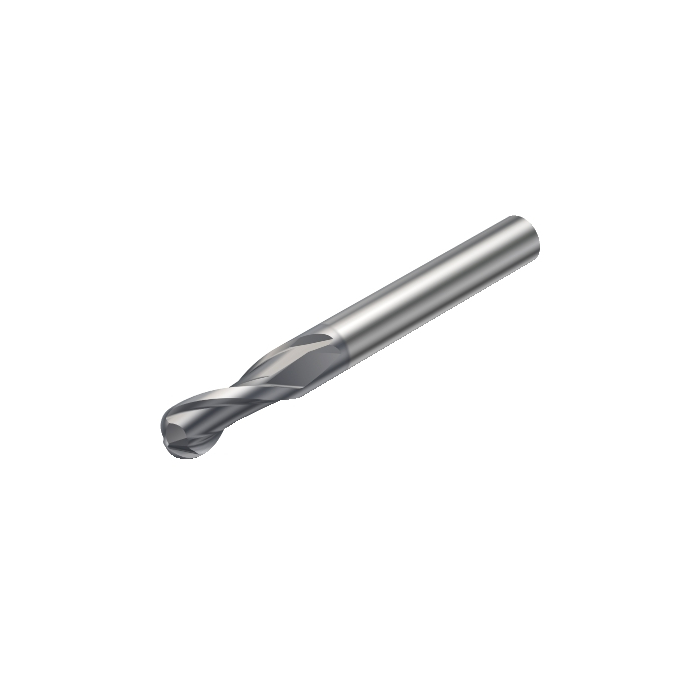

CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
More Information
DCON - Connection Diameter 9.525mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 88.9mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 93.2g
OAL - Overall Length 88.9mm
OHX - Maximum Overhang 49.2mm
RMPX - Maximum Ramping Angle 15deg
RE - Corner Radius 4.7625mm
LU - Usable Length 19.05mm
APMX - Depth Of Cut Maximum 19.05mm
DC - Cutting Diameter 9.525mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle -5.5deg
GAMP - Axial Rake Angle 1.5deg
PSIR - Tool Lead Angle 0deg
ULDR - Usable Length Diameter Ratio 2
ORDCODE RA216.42-2430-AK12G 1610
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R3750_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-06-14 13:26:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1610
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CPDF - Cutting Pitch Differential False
