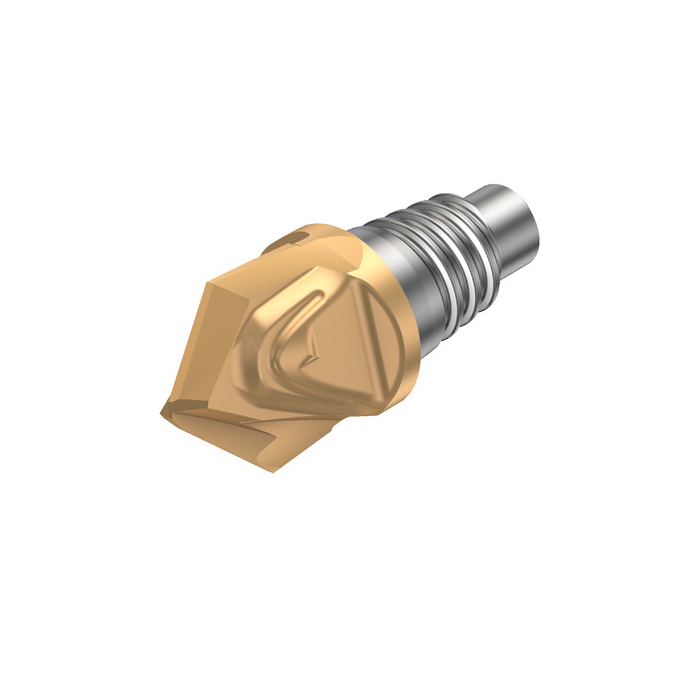

Sandvik Coromant 316-12CM210-12045G 1030 CoroMill™ 316 solid carbide head for chamfer milling

Name: Sandvik Coromant 316-12CM210-12045G 1030 CoroMill™ 316 solid carbide head for chamfer milling
SKU: 6056191
Price: 1209.80 ZAR
Availability: OutOfStock

Be the first to review this product

R 1 209,80 inc. vat

Out of stock

SKU

6056191

CoroMill® 316 solid carbide head for chamfer milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for chamfer milling

More Information

More Information
DCON - Connection Diameter	11.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	13.272mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.03kg
OAL - Overall Length	27.8mm
OHX - Maximum Overhang	13.272mm
KAPR - Tool Cutting Edge Angle	45deg
APMX - Depth Of Cut Maximum	5.23mm
DC - Cutting Diameter	1.5mm
DN - Neck Diameter	11.7mm
GAMF - Radial Rake Angle	10deg
GAMP - Axial Rake Angle	0deg
DCX - Maximum Cutting Diameter	12mm
ORDCODE	316-12CM210-12045G 1030
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0120_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-20 22:01:00.000
Hand	R
Grade	1030
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
