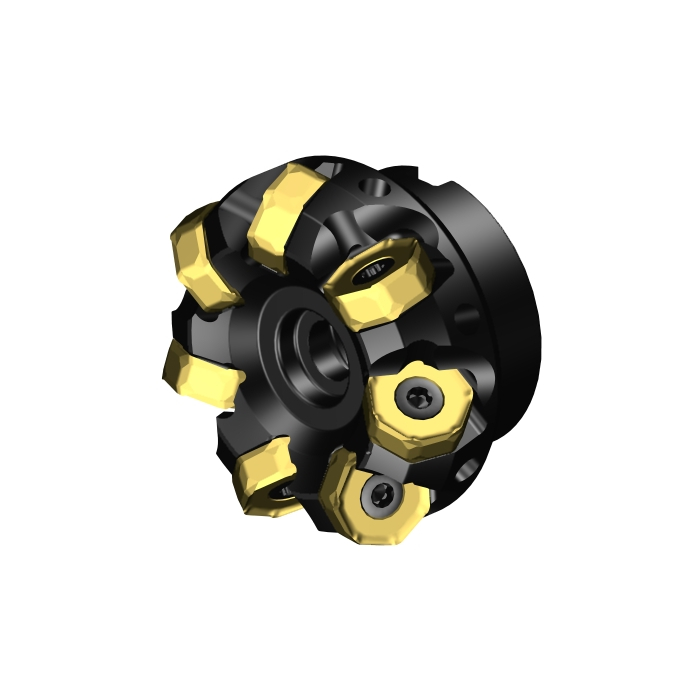

Sandvik Coromant A725-063R25-21M CoroMill™ 745 face milling cutter
Next
Sandvik Coromant 745-080C8-21M CoroMill™ 745 face milling cutter
Previous
R 14 468,15
inc. vat
Out of stock
SKU
6877785
CoroMill® 745 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 745 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 25.4mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 50mm |
TQ - Torque | 12Nm |
RPMX - Rotational Speed Maximum | 58941/min |
WT - Weight Of Item | 0.993kg |
OAL - Overall Length | 50mm |
OHX - Maximum Overhang | 50mm |
KAPR - Tool Cutting Edge Angle | 25deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | -17deg |
LAMS - Inclination Angle | 24deg |
AN - Clearance Angle Major | 13deg |
IC - Inscribed Circle Diameter | 21mm |
Insert Thickness | 9mm |
L - Cutting Edge Length | 10.113067mm |
APMX - Depth Of Cut Maximum | 2.8mm |
DC - Cutting Diameter | 63.5mm |
DCF - Cutting Diameter Face Contact | 63.5mm |
GAMF - Radial Rake Angle | -28.04519206deg |
GAMP - Axial Rake Angle | -5.08162214deg |
DCX - Maximum Cutting Diameter | 86.9mm |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | A725-063R25-21H |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_S1000_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-24 02:38:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NN2109_1 |
Hand | R |
MIID - Master Insert Identification | 745R-2109 |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 21 |
CICT - Cutting Item Count | 7 |
ZEFP - Peripheral Effective Cutting Edge Count | 7 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
