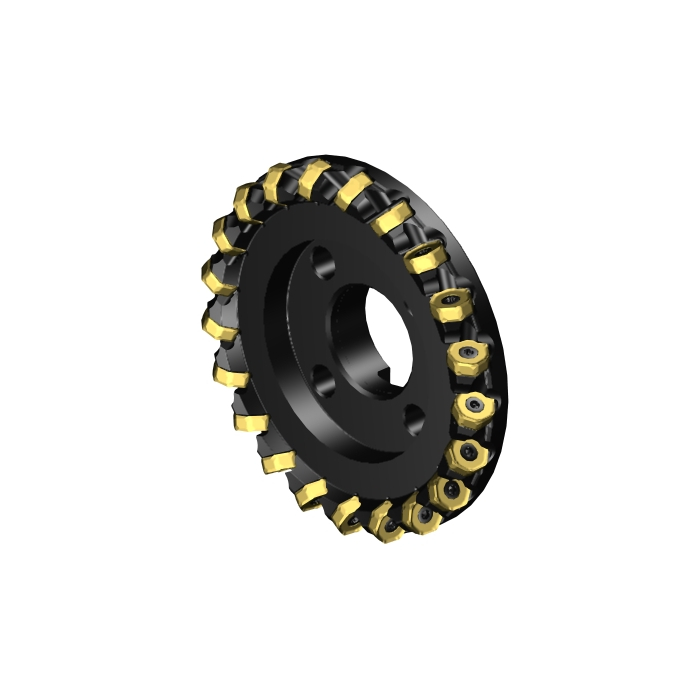

Sandvik Coromant A745-203R63-21H CoroMill™ 745 face milling cutter
R 42 412,00
inc. vat
In stock
SKU
6702272
CoroMill® 745 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 745 face milling cutter
| DCON - Connection Diameter | 63.5mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 63mm |
| TQ - Torque | 12Nm |
| RPMX - Rotational Speed Maximum | 32961/min |
| WT - Weight Of Item | 6.035kg |
| OAL - Overall Length | 63mm |
| OHX - Maximum Overhang | 63mm |
| DBC - Diameter Bolt Circle | 101.6mm |
| KAPR - Tool Cutting Edge Angle | 42deg |
| RMPX - Maximum Ramping Angle | 0deg |
| GAMO - Orthogonal Rake Angle | -10deg |
| LAMS - Inclination Angle | 20deg |
| AN - Clearance Angle Major | 13deg |
| IC - Inscribed Circle Diameter | 21mm |
| Insert Thickness | 9mm |
| L - Cutting Edge Length | 10.113067mm |
| APMX - Depth Of Cut Maximum | 5.2mm |
| DC - Cutting Diameter | 203.2mm |
| DCF - Cutting Diameter Face Contact | 203.2mm |
| GAMF - Radial Rake Angle | -21.22957395deg |
| GAMP - Axial Rake Angle | 6.41919062deg |
| DCX - Maximum Cutting Diameter | 218.4mm |
| AZ - Maximum Plunge Depth | 0mm |
| ORDCODE | A745-203R63-21H |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1C4_S2500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-24 02:34:00.000 |
| STDLET - Standard Letter | C |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NN2109_1 |
| Hand | R |
| MIID - Master Insert Identification | 745R-2109 |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 21 |
| CICT - Cutting Item Count | 21 |
| ZEFP - Peripheral Effective Cutting Edge Count | 21 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
