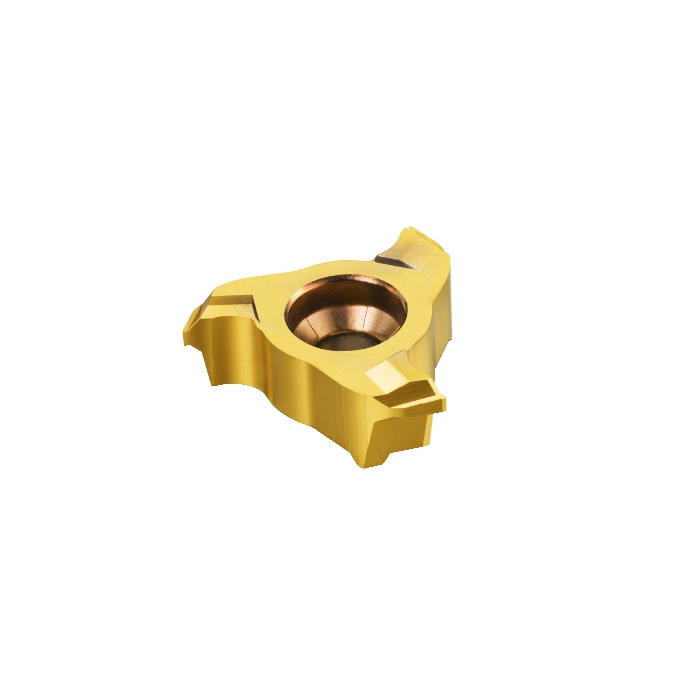

Sandvik Coromant 327R12-22 13045-GC 1025 CoroMill™ 327 solid carbide head for grooving

R 1 015,45 inc. vat
In stock
SKU
5758651
CoroMill® 327 solid carbide head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 327 solid carbide head for grooving
More Information
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 5.17mm
RPMX - Rotational Speed Maximum 500001/min
WT - Weight Of Item 10.3g
OAL - Overall Length 5.85mm
OHX - Maximum Overhang 5.17mm
RE - Corner Radius 0mm
CW - Cutting Width 1.3mm
CWTOLL - Cutting Width Lower Tolerance 0.09mm
CWTOLU - Cutting Width Upper Tolerance 0.11mm
CDX - Cutting Depth Maximum 0.67mm
DC - Cutting Diameter 21.7mm
FHA - Flute Helix Angle 0deg
GAMF - Radial Rake Angle 1.5deg
GAMP - Axial Rake Angle 0deg
ORDCODE 327R12-22 13045-GC 1025
ADINTMS - Adaptive Interface Machine Direction M_CM3271_C0120_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-06-23 11:41:00.000
Hand R
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
BSG - Basic Standard Group DIN 471/472
ZEFP - Peripheral Effective Cutting Edge Count 3
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
