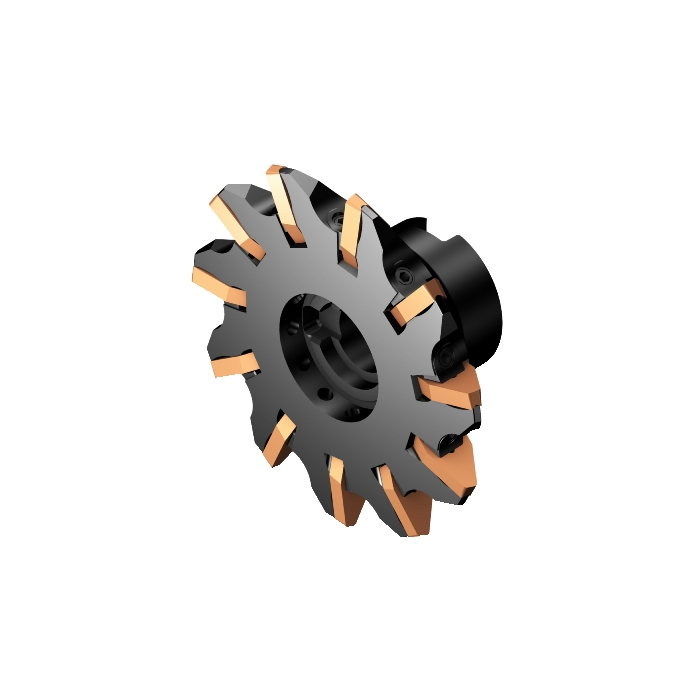

Sandvik Coromant 162-120Q27-60 CoroMill™ 162 gear milling cutter

Name: Sandvik Coromant 162-120Q27-60 CoroMill™ 162 gear milling cutter
SKU: 6565254
Price: 53029.95 ZAR
Availability: InStock

R 53 029,95 inc. vat

In stock

SKU

6565254

CoroMill® 162 gear milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 162 gear milling cutter

More Information
DCON - Connection Diameter	27mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	51mm
BD - Body Diameter	92mm
LB - Body Length	51mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	20001/min
WT - Weight Of Item	1.8kg
OAL - Overall Length	51mm
OHX - Maximum Overhang	51mm
KAPR - Tool Cutting Edge Angle	70deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
Insert Thickness	5.5mm
REL - Corner Radius Left	1.2mm
RER - Corner Radius Right	1.2mm
CDX - Cutting Depth Maximum	14.7mm
APMX - Depth Of Cut Maximum	14.7mm
W1 - Insert Width	14.67mm
CF - Spot Chamfer	9.3848mm
DC - Cutting Diameter	120mm
DCF - Cutting Diameter Face Contact	116.058mm
DCX - Maximum Cutting Diameter	120mm
ORDCODE	162-120Q27-60
ADINTMS - Adaptive Interface Machine Direction	M_FDA1B1_G2700_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-06-14 13:27:00.000
STDLET - Standard Letter	B
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	W
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NHM60_1
Hand	R
MIID - Master Insert Identification	176M60-N150612E-PM
IFS - Insert Mounting Style Code	1
SSC - Insert Seat Size Code	15
PRSPC - Profile Specification	DIN3272-II /6
CICT - Cutting Item Count	11
ZEFP - Peripheral Effective Cutting Edge Count	11
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
