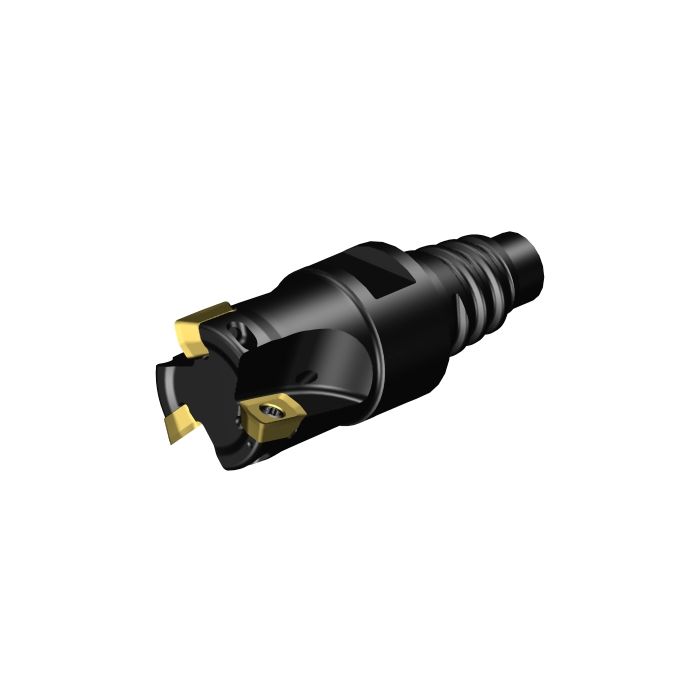

Sandvik Coromant R390-0157EH16-07M CoroMill™ 390 square shoulder milling cutter
R 5 368,20
inc. vat
In stock
SKU
6851099
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 15.5mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 25mm |
| BD - Body Diameter | 14.7mm |
| LB - Body Length | 15.7mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 0.5Nm |
| RPMX - Rotational Speed Maximum | 381001/min |
| WT - Weight Of Item | 0.033kg |
| OAL - Overall Length | 42mm |
| OHX - Maximum Overhang | 25mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 3.1deg |
| OHN - Minimum Overhang | 25mm |
| GAMO - Orthogonal Rake Angle | 20deg |
| LAMS - Inclination Angle | 10deg |
| AN - Clearance Angle Major | 18deg |
| Insert Thickness | 2.4mm |
| LU - Usable Length | 15.7mm |
| L - Cutting Edge Length | 6.92mm |
| APMX - Depth Of Cut Maximum | 5.8mm |
| W1 - Insert Width | 4.06mm |
| DC - Cutting Diameter | 15.7mm |
| DCF - Cutting Diameter Face Contact | 14.9mm |
| GAMF - Radial Rake Angle | 19.99999978deg |
| GAMP - Axial Rake Angle | 9.99999996deg |
| AZ - Maximum Plunge Depth | 0.5mm |
| ORDCODE | R390-0157EH16-07M |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0160_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:14:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MH0702_1 |
| Hand | R |
| MIID - Master Insert Identification | 390R-07.. |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 07 |
| CICT - Cutting Item Count | 3 |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | True |
