R 48 845,10
inc. vat
In stock
SKU
5740358

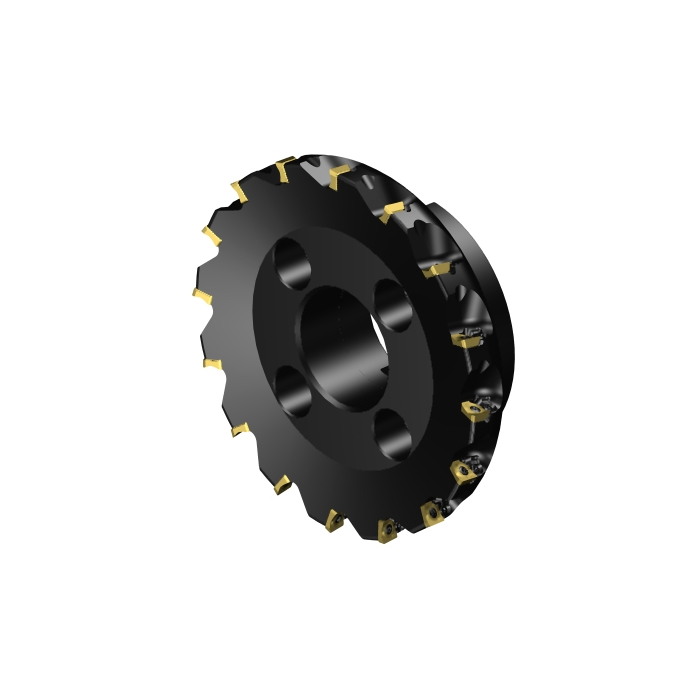

CoroMill® Century square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Century square shoulder milling cutter
DCON - Connection Diameter | 63.5mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 63mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 156001/min |
WT - Weight Of Item | 8kg |
OAL - Overall Length | 63mm |
OHX - Maximum Overhang | 63mm |
DBC - Diameter Bolt Circle | 101.6mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | -11.7deg |
LAMS - Inclination Angle | 8deg |
Insert Thickness | 5mm |
APMX - Depth Of Cut Maximum | 11mm |
W1 - Insert Width | 11.5mm |
DC - Cutting Diameter | 203.2mm |
DCF - Cutting Diameter Face Contact | 202.4mm |
GAMF - Radial Rake Angle | -11.69999976deg |
GAMP - Axial Rake Angle | 7.99999974deg |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | RA590-203R63S-11M |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1C4_S2500_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-09-26 13:43:00.000 |
STDLET - Standard Letter | C |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MJ1105_2 |
Hand | R |
MIID - Master Insert Identification | R590-1105.. |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 11 |
CICT - Cutting Item Count | 16 |
ZEFP - Peripheral Effective Cutting Edge Count | 16 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
