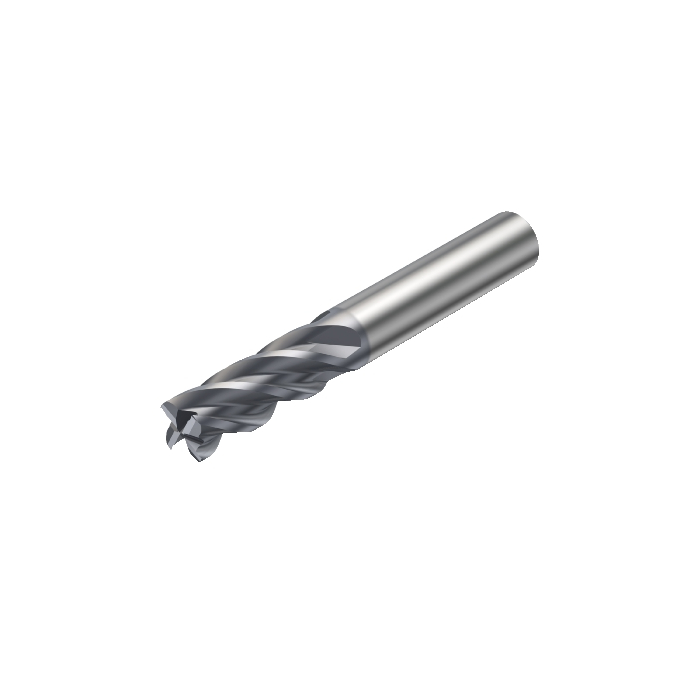

Sandvik Coromant 1P240-1270-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing

Name: Sandvik Coromant 1P240-1270-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
SKU: 7045752
Price: 2194.20 ZAR
Availability: InStock

Be the first to review this product

R 2 194,20 inc. vat

In stock

SKU

7045752

CoroMill® Plura solid carbide end mill for Heavy roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy roughing

More Information

More Information
DCON - Connection Diameter	12.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	88.9mm
RPMX - Rotational Speed Maximum	346001/min
WT - Weight Of Item	0.15kg
OAL - Overall Length	88.9mm
OHX - Maximum Overhang	43.6mm
LSC - Clamping Length	45.3mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
LU - Usable Length	28.575mm
APMX - Depth Of Cut Maximum	28.575mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.203mm
DC - Cutting Diameter	12.7mm
DCF - Cutting Diameter Face Contact	12.294mm
FHA - Flute Helix Angle	35deg
GAMF - Radial Rake Angle	9deg
GAMP - Axial Rake Angle	5.5deg
ULDR - Usable Length Diameter Ratio	2.25
DCTOLL - Lower Cutting Diameter Tolerance	-0.07mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	1P240-1270-XA 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R5000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:26:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD AlCrN
SUBSTRATE	HC
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
