Sandvik Coromant 2P342-0794-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
Next
Sandvik Coromant 2F342-0794-076-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
Previous
R 2 110,25
inc. vat
In stock
SKU
6732516

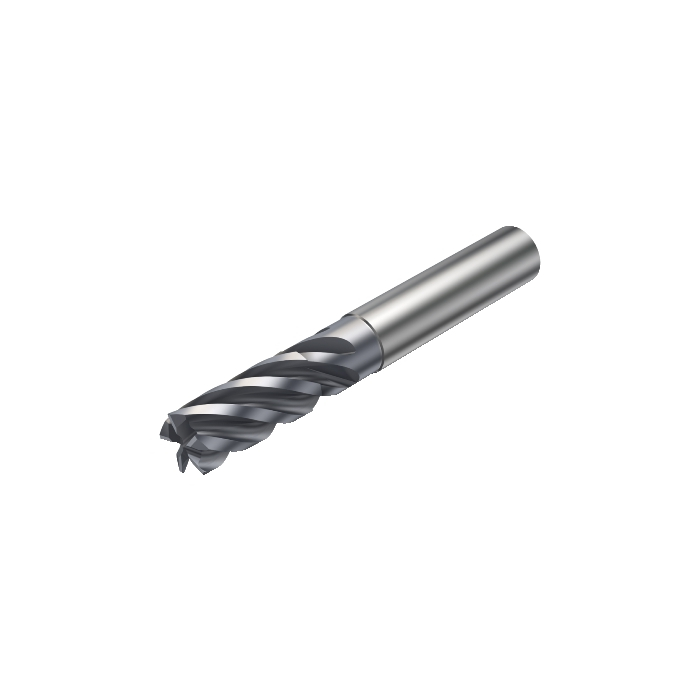

CoroMill® Plura solid carbide end mill for Heavy Duty milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy Duty milling
DCON - Connection Diameter | 7.9375mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 63.5mm |
BD - Body Diameter | 7.55mm |
LB - Body Length | 27.32mm |
BHTA - Body Half Taper Angle | 30deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.045kg |
OAL - Overall Length | 63.5mm |
OHX - Maximum Overhang | 27.4mm |
LSC - Clamping Length | 36mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 7deg |
LU - Usable Length | 26.988mm |
APMX - Depth Of Cut Maximum | 19.1mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.102mm |
DC - Cutting Diameter | 7.938mm |
DCF - Cutting Diameter Face Contact | 7.734mm |
DN - Neck Diameter | 7.55mm |
FHA - Flute Helix Angle | 38deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 10.5deg |
ULDR - Usable Length Diameter Ratio | 3.39984882842 |
ORDCODE | 2N342-0794-PC 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R3125_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:55:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1730 |
COATING | PVD AlCrN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | True |
