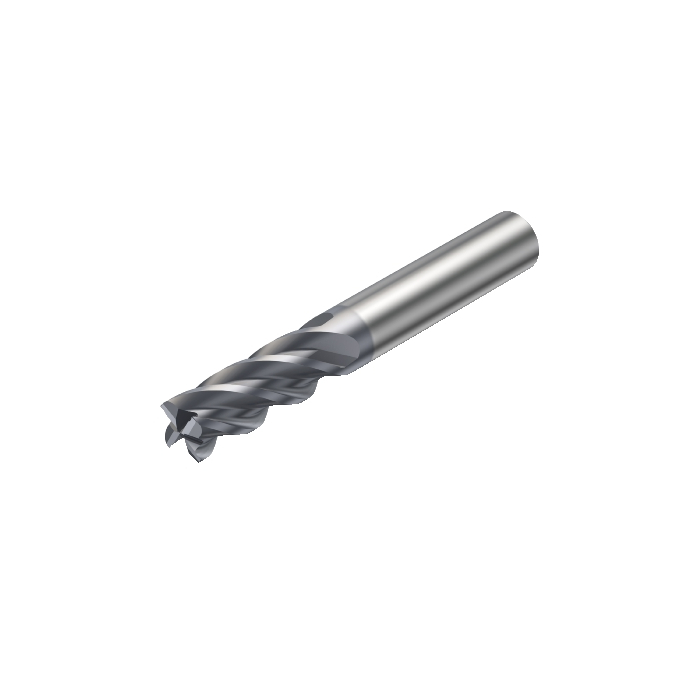

Sandvik Coromant 2P340-0400-PA 1630 CoroMill™ Plura solid carbide end mill for High Feed Side milling

Name: Sandvik Coromant 2P340-0400-PA 1630 CoroMill™ Plura solid carbide end mill for High Feed Side milling
SKU: 6260102
Price: 1423.70 ZAR
Availability: InStock

Be the first to review this product

R 1 423,70 inc. vat

In stock

SKU

6260102

CoroMill® Plura solid carbide end mill for High Feed Side milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for High Feed Side milling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.029kg
OAL - Overall Length	57mm
OHX - Maximum Overhang	23mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
LU - Usable Length	11mm
APMX - Depth Of Cut Maximum	11mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.13mm
DC - Cutting Diameter	4mm
DCF - Cutting Diameter Face Contact	3.74mm
FHA - Flute Helix Angle	37deg
GAMF - Radial Rake Angle	12deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	2.75
ORDCODE	2P340-0400-PA 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:37:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
