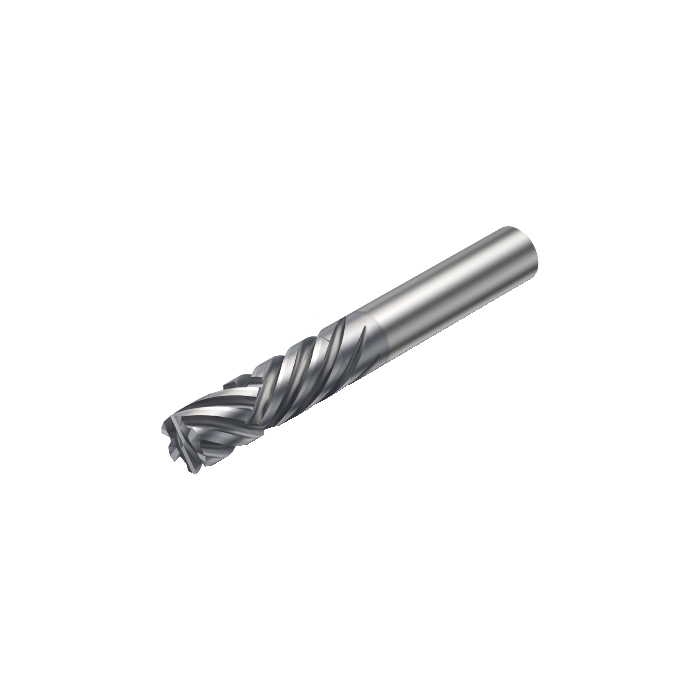

Sandvik Coromant 2P460-0952-NA 1630 CoroMill™ Plura solid carbide end mill for Edging applications

Name: Sandvik Coromant 2P460-0952-NA 1630 CoroMill™ Plura solid carbide end mill for Edging applications
SKU: 6255705
Price: 3516.70 ZAR
Availability: InStock

Be the first to review this product

R 3 516,70 inc. vat

In stock

SKU

6255705

CoroMill® Plura solid carbide end mill for Edging applications

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Edging applications

More Information

More Information
DCON - Connection Diameter	9.525mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	76.2mm
RPMX - Rotational Speed Maximum	400001/min
WT - Weight Of Item	78.5g
OAL - Overall Length	76.2mm
OHX - Maximum Overhang	36.2mm
LSC - Clamping Length	40mm
KAPR - Tool Cutting Edge Angle	90deg
RE - Corner Radius	0mm
LU - Usable Length	31.75mm
APMX - Depth Of Cut Maximum	31.75mm
DC - Cutting Diameter	9.525mm
DCF - Cutting Diameter Face Contact	9.525mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	12.5deg
GAMP - Axial Rake Angle	4deg
ULDR - Usable Length Diameter Ratio	3.333333333333
SPTL - Length Were Flute Helix Hand Changes Direction	9.52mm
ORDCODE	2P460-0952-NA 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R3750_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-08-24 06:07:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	COMPRESSION
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
