Sandvik Coromant 2F342-1905-076-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling Previous Sandvik Coromant 2F342-1905-076-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

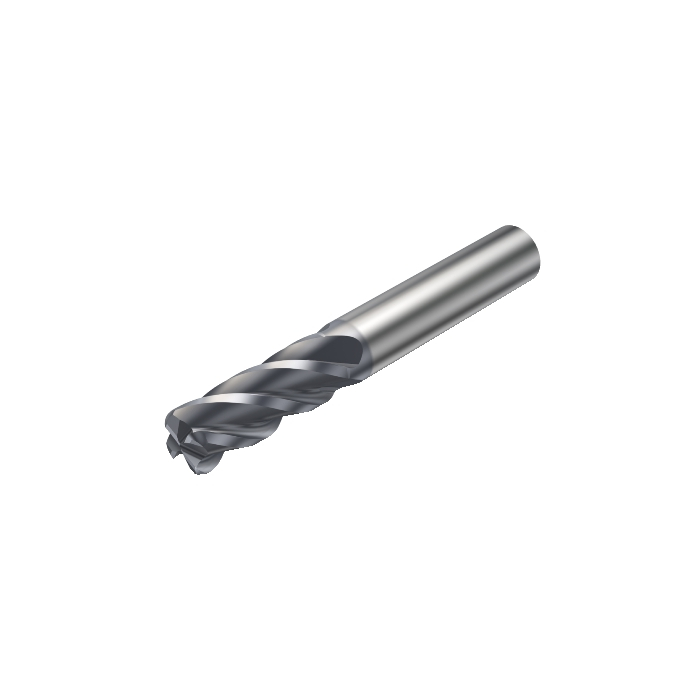

Sandvik Coromant 2S342-1905-076-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

R 8 162,70 inc. vat
In stock
SKU
6732622
CoroMill® Plura solid carbide end mill for Heavy Duty milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy Duty milling
More Information
DCON - Connection Diameter 19.05mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 101.6mm
RPMX - Rotational Speed Maximum 153001/min
WT - Weight Of Item 0.352kg
OAL - Overall Length 101.6mm
OHX - Maximum Overhang 50mm
LSC - Clamping Length 51.6mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 7deg
RE - Corner Radius 0.762mm
LU - Usable Length 41.275mm
APMX - Depth Of Cut Maximum 41.275mm
DC - Cutting Diameter 19.05mm
DCF - Cutting Diameter Face Contact 17.526mm
FHA - Flute Helix Angle 42deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 10.5deg
ULDR - Usable Length Diameter Ratio 2.166666666667
ORDCODE 2S342-1905-076-PA 1730
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R7500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 10:07:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1730
COATING PVD AlCrN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential True
